HOW TO INSTALL COLD AIR INTAKE SYSTEM ON SUBARU BRZ / SCION FR-S / TOYOTA 86

This Install Guide is intended to help with the installation of the VR Performance Cold Air Intake Kit on the 2013-18 Subaru BRZ / Scion FR-S / Toyota 86.

INSTALL DIFFICULTY: 1of5

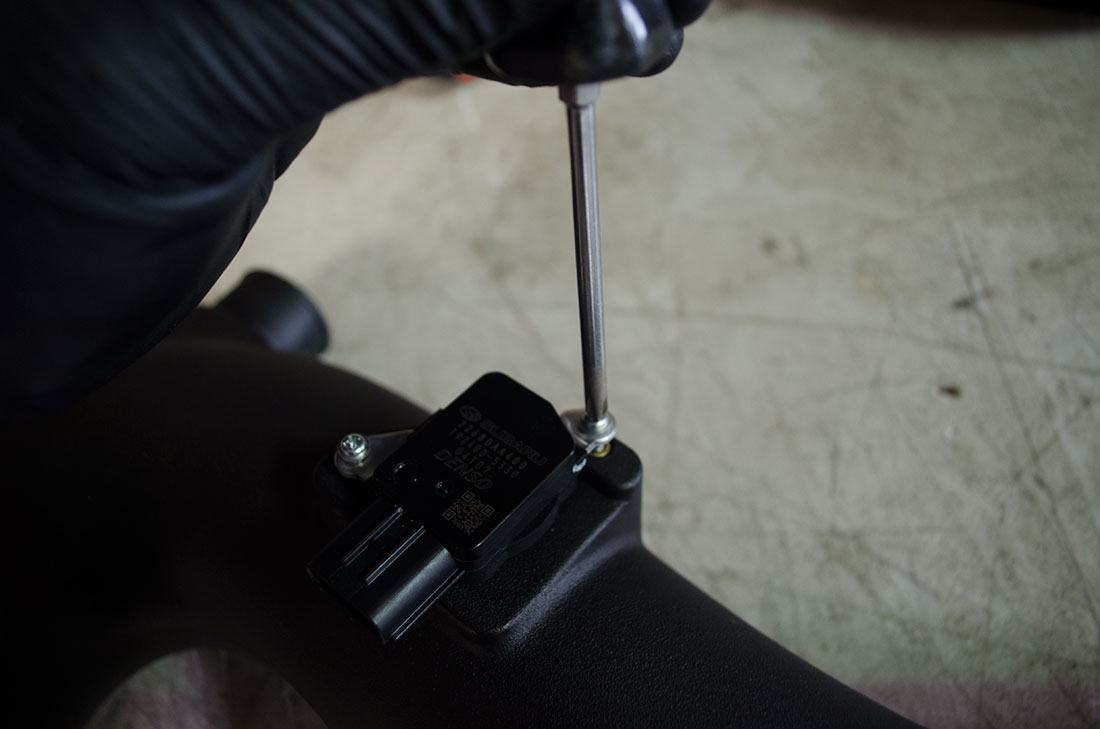

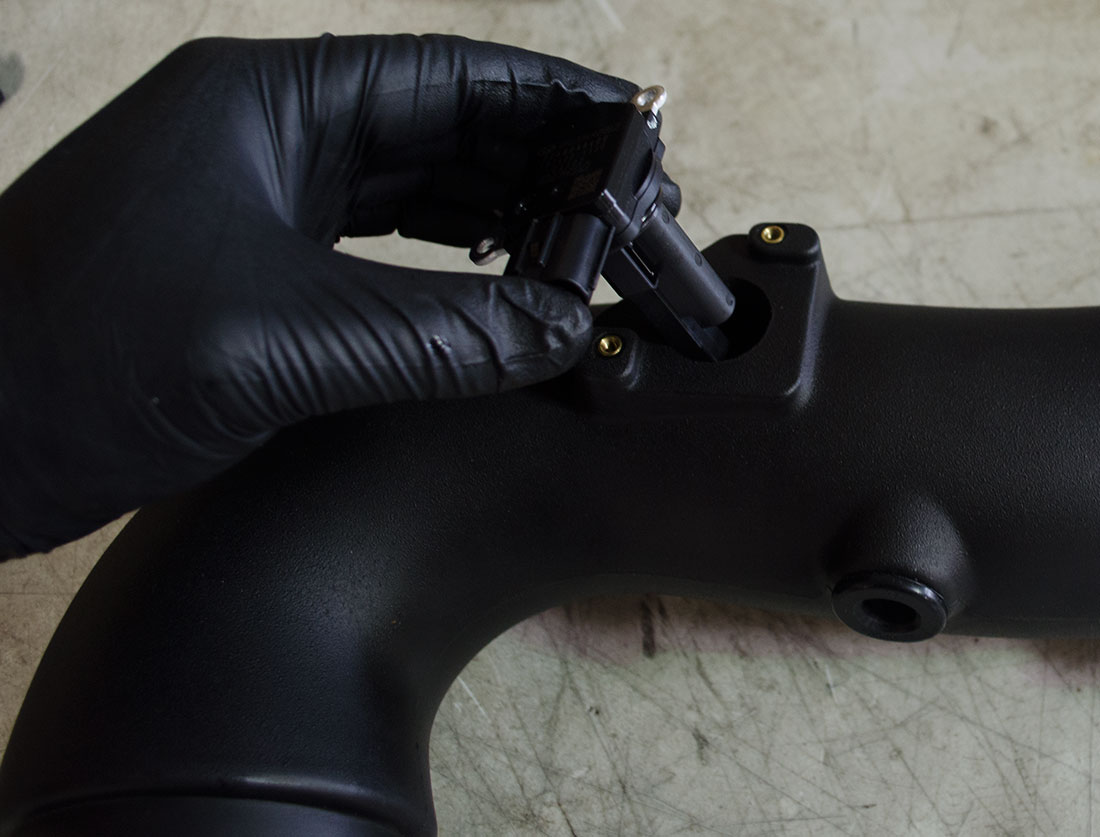

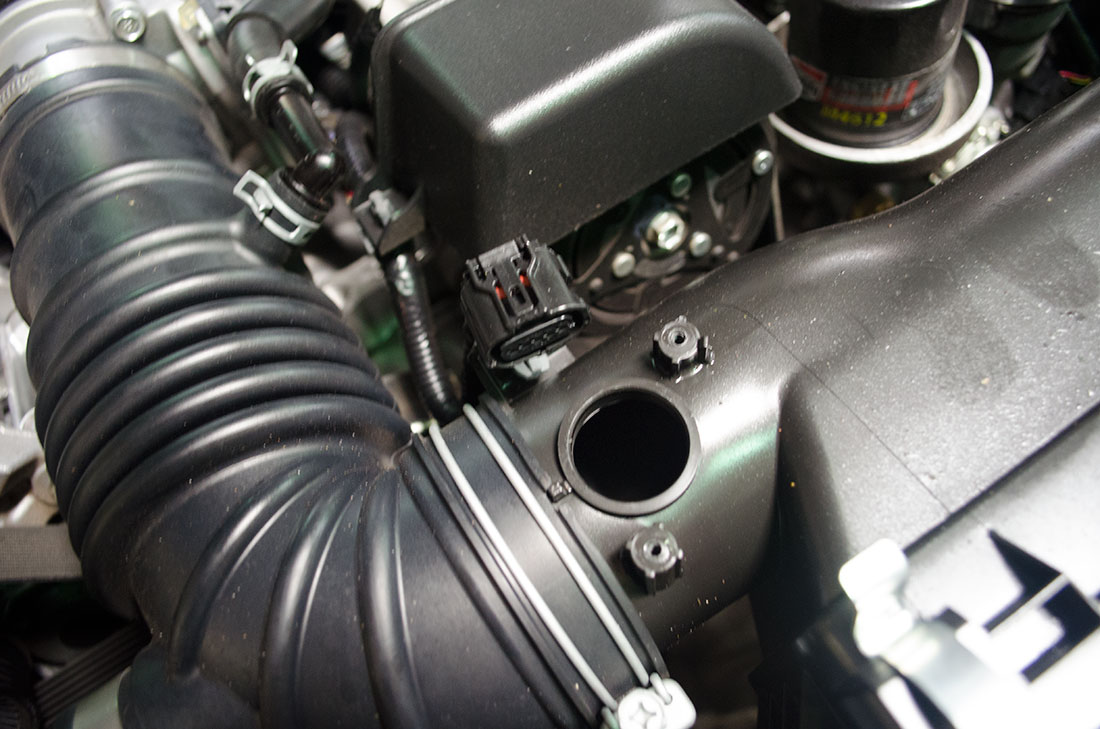

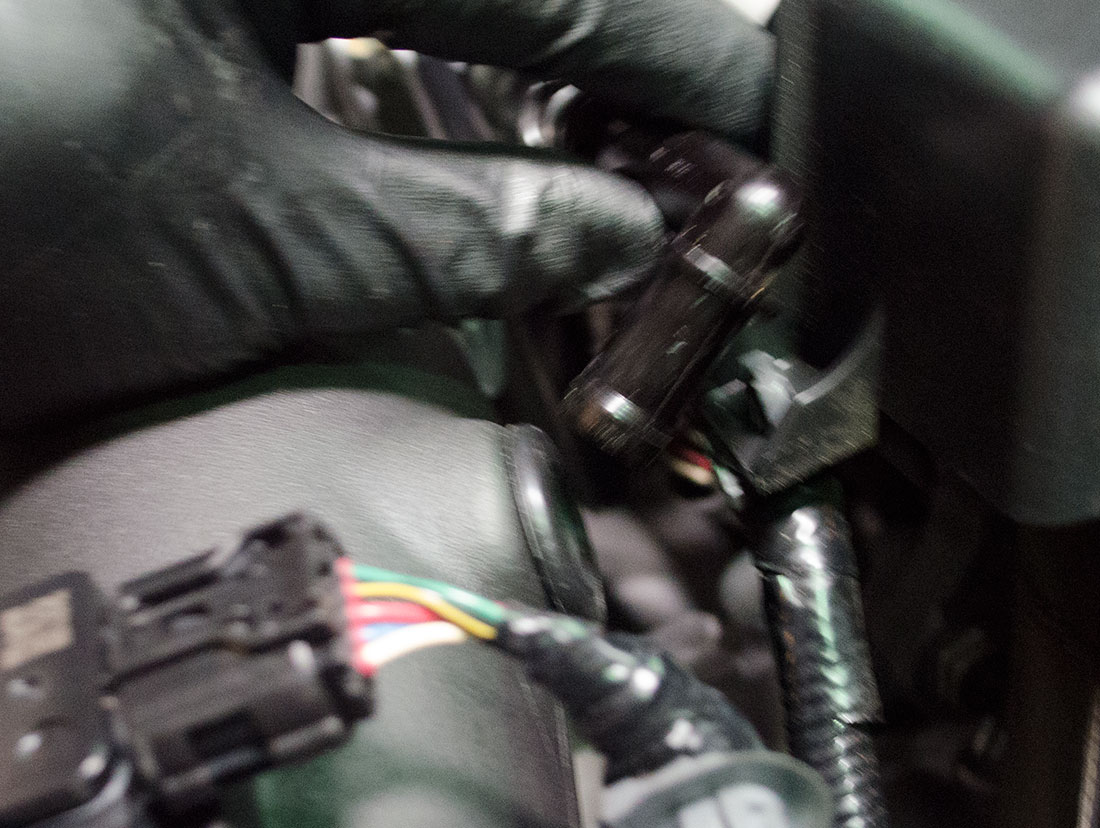

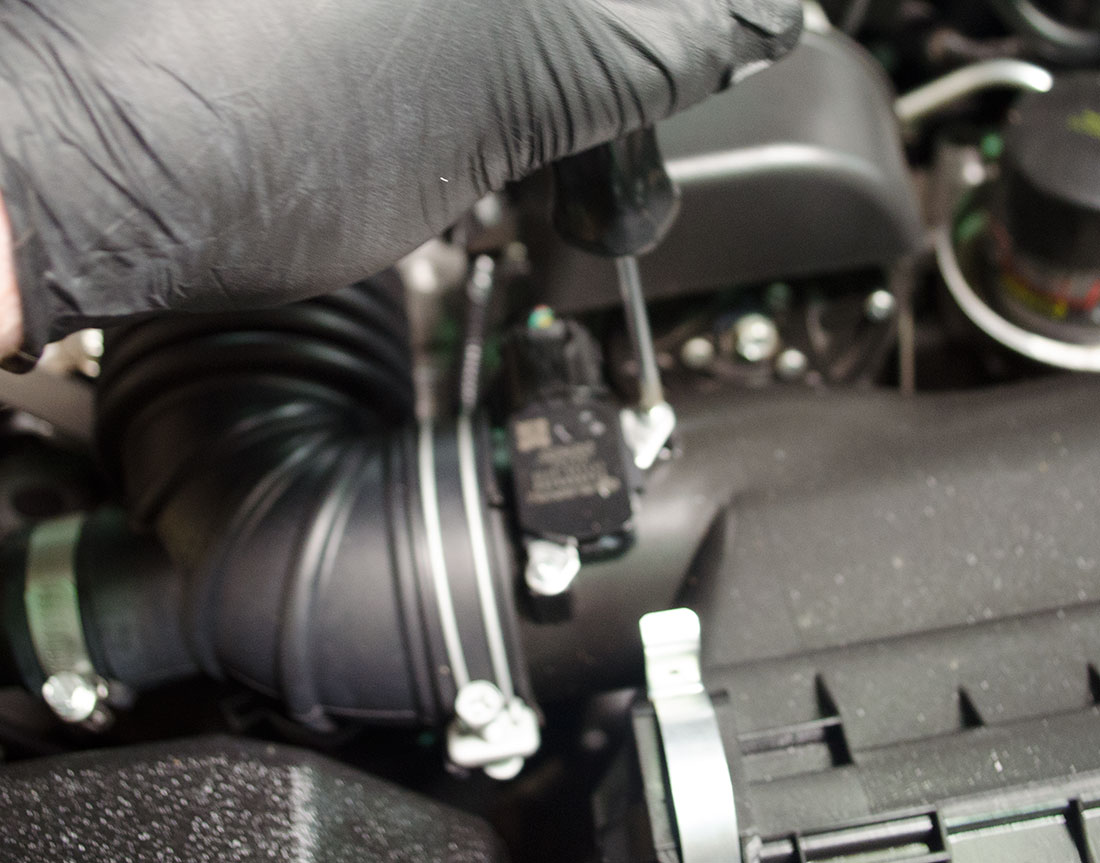

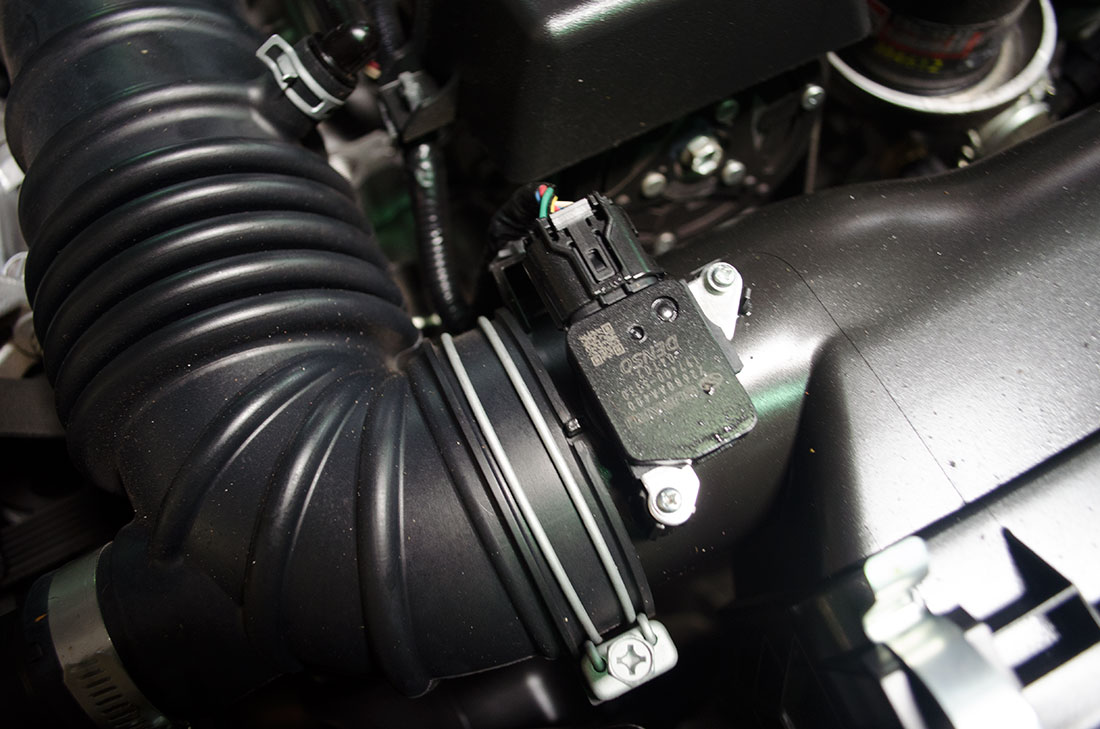

STEP 1) Unclip the Mass Air Flow Sensor Harness and then loosen the 2 screws. Remove the Mass Air Flow Sensor. Reinstall into the new intake tube with the 2 supplied screws.

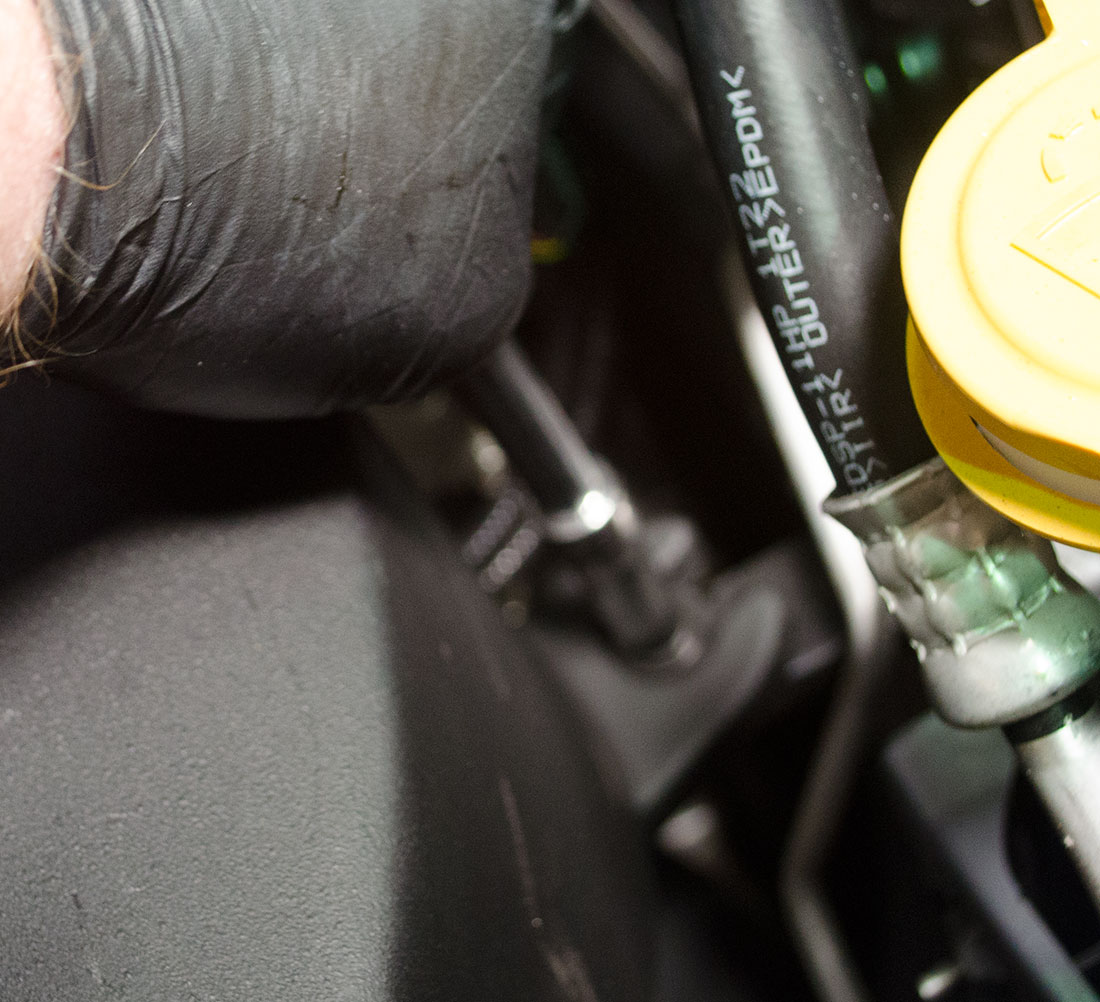

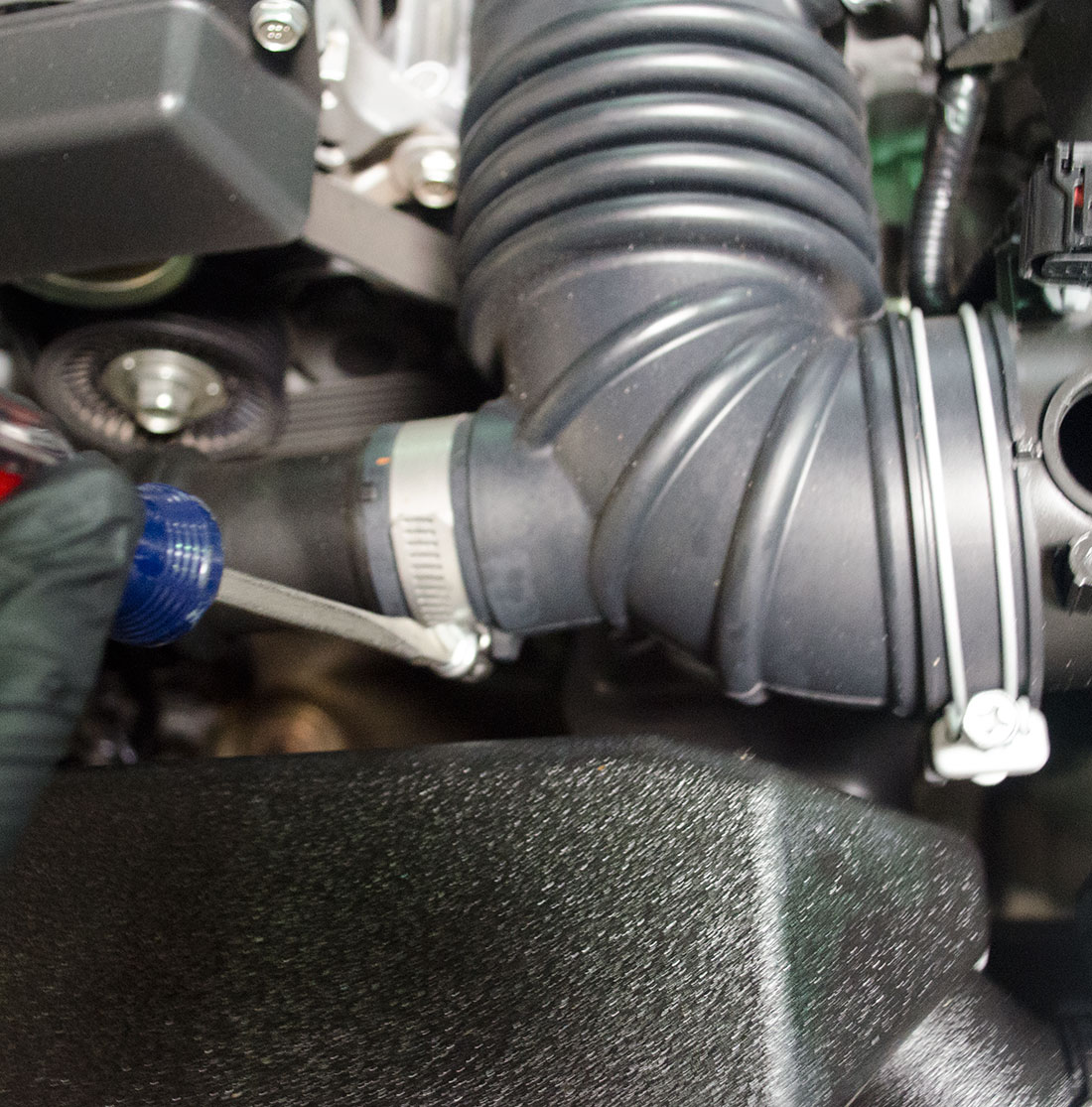

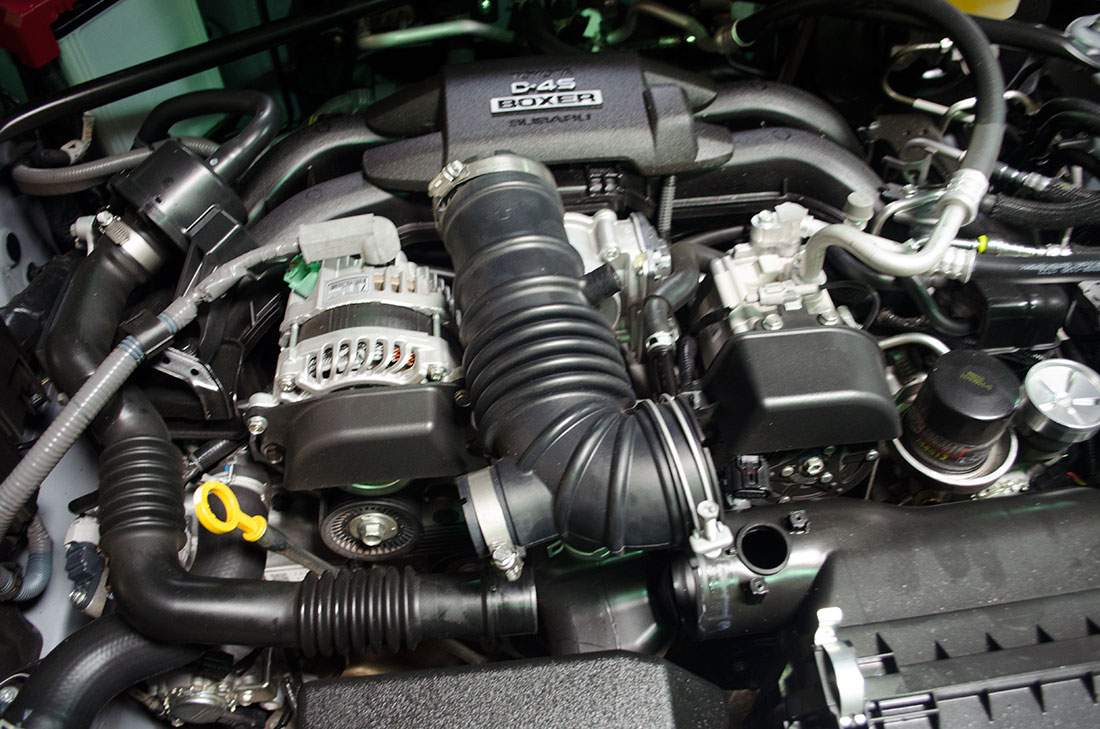

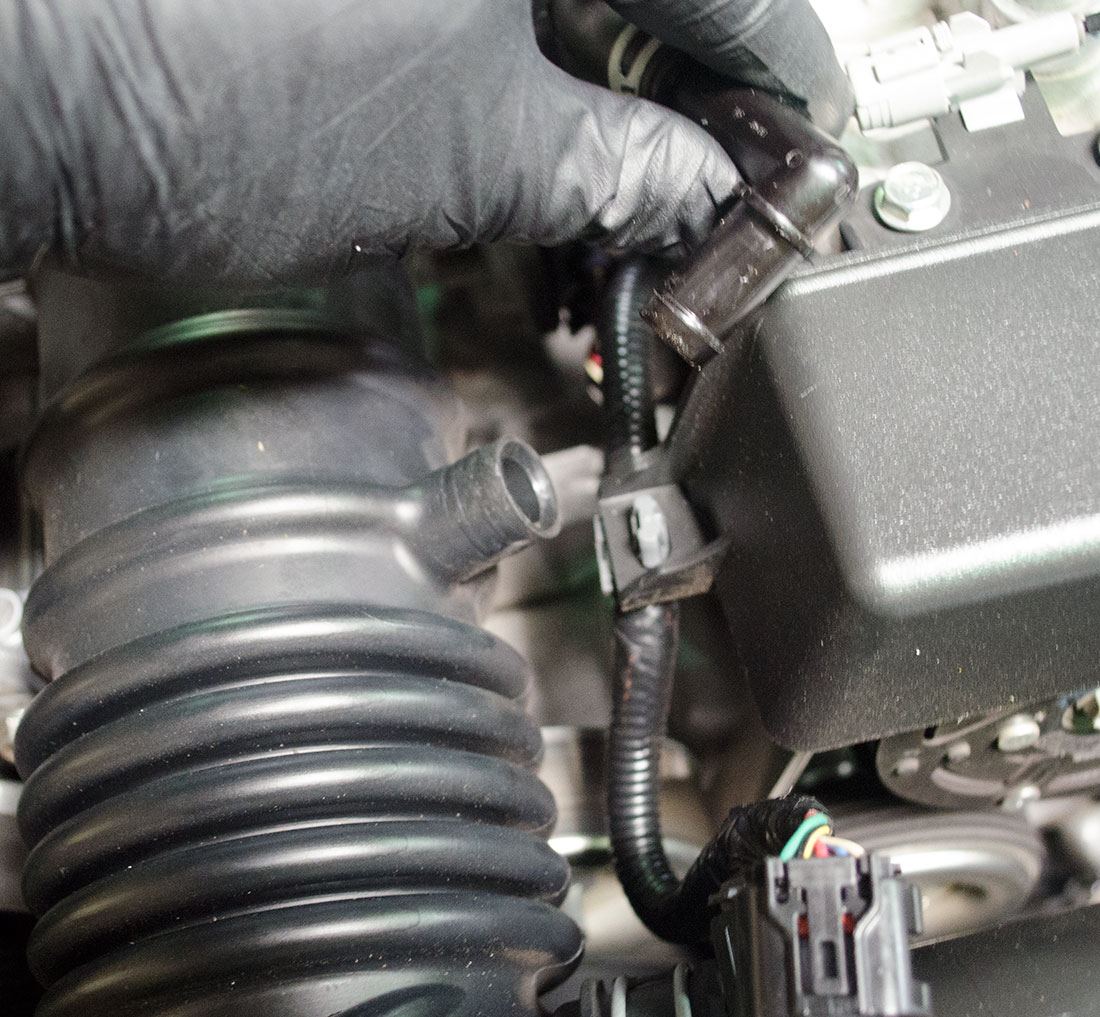

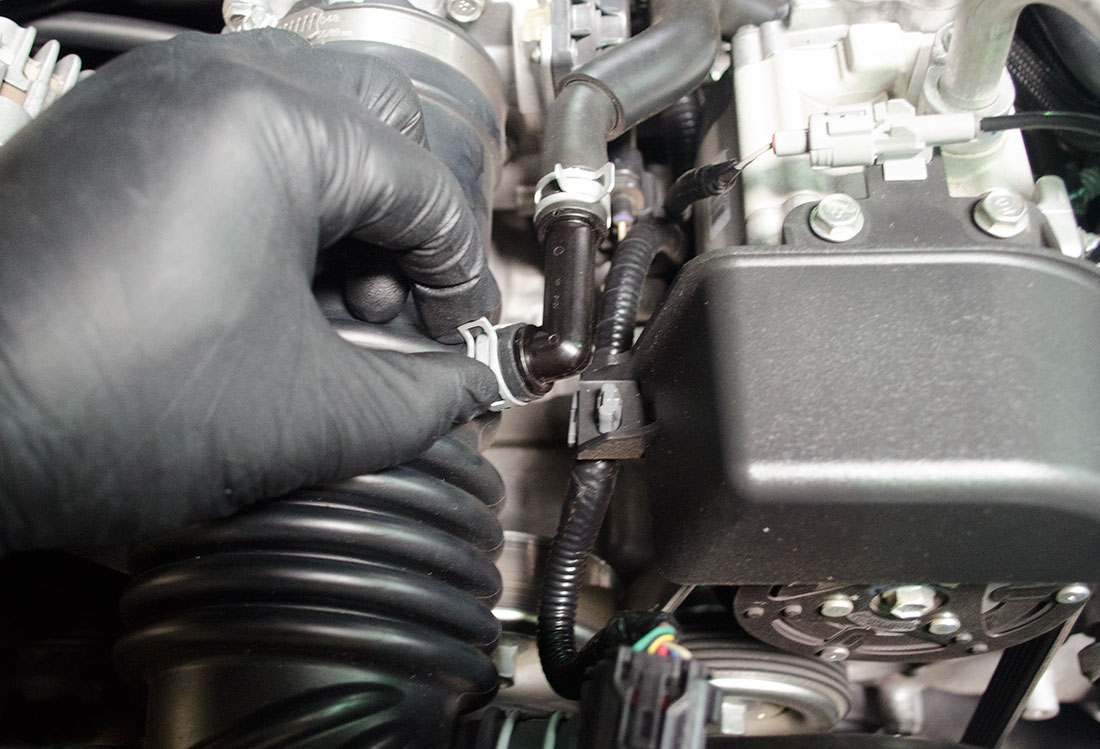

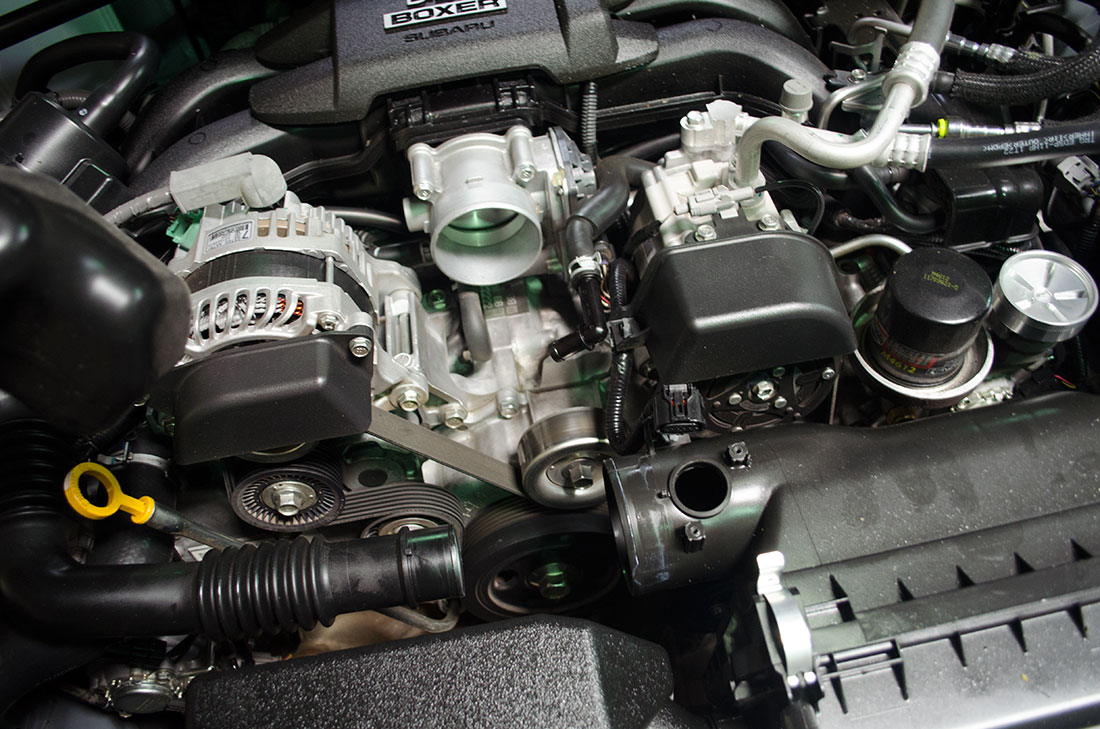

STEP 2)  Loosen hose clamps at the throttle body, air sound tube, and air box. Unclip and pull out the air vent tube. Then remove the air tube.

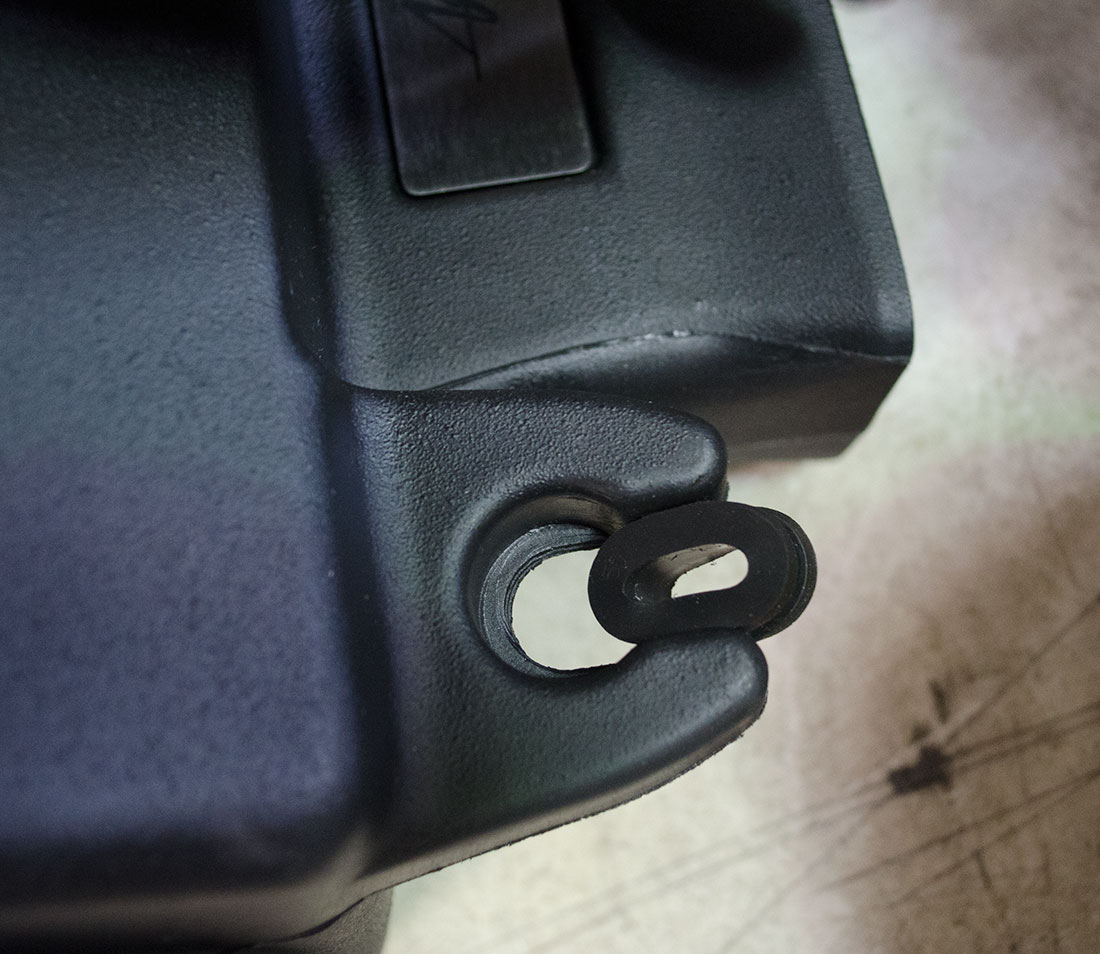

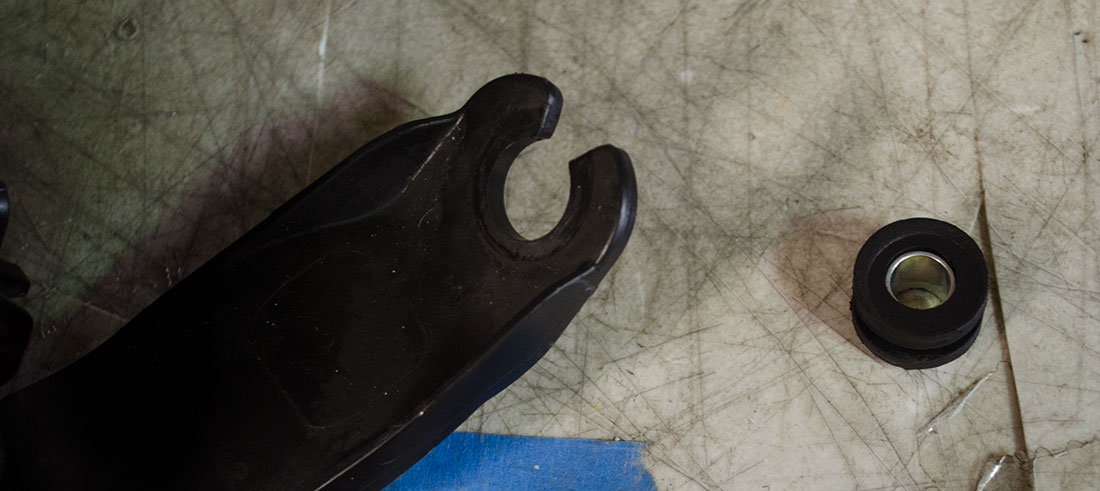

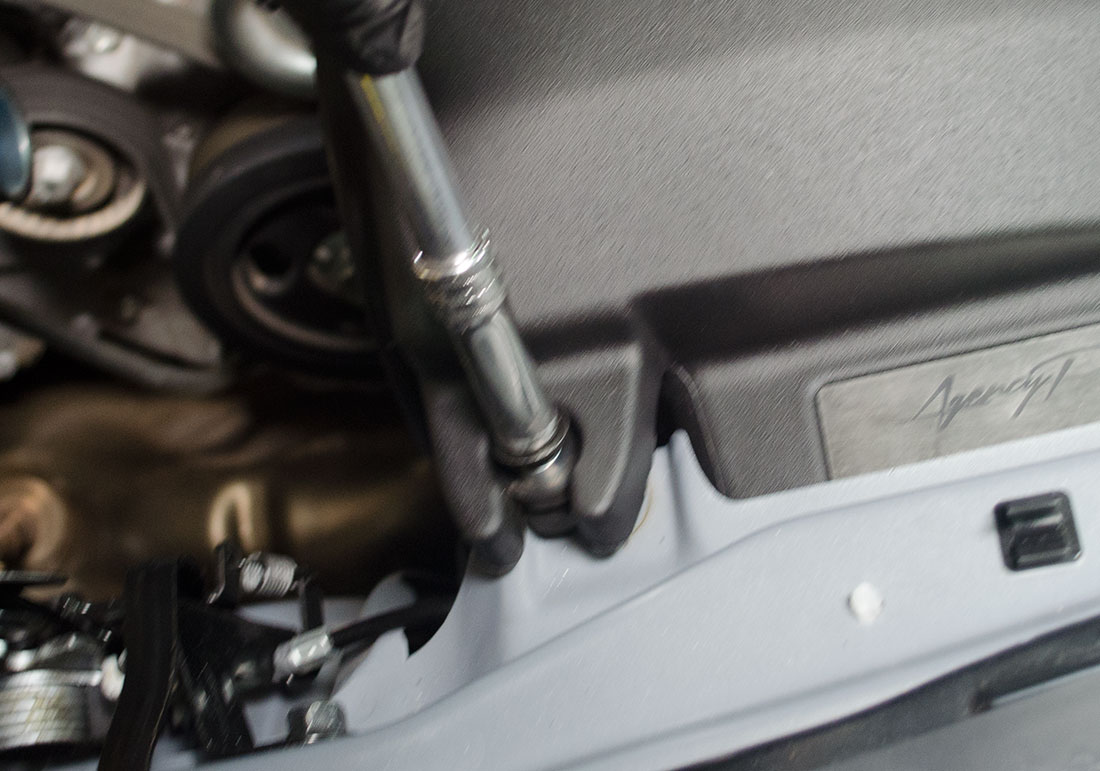

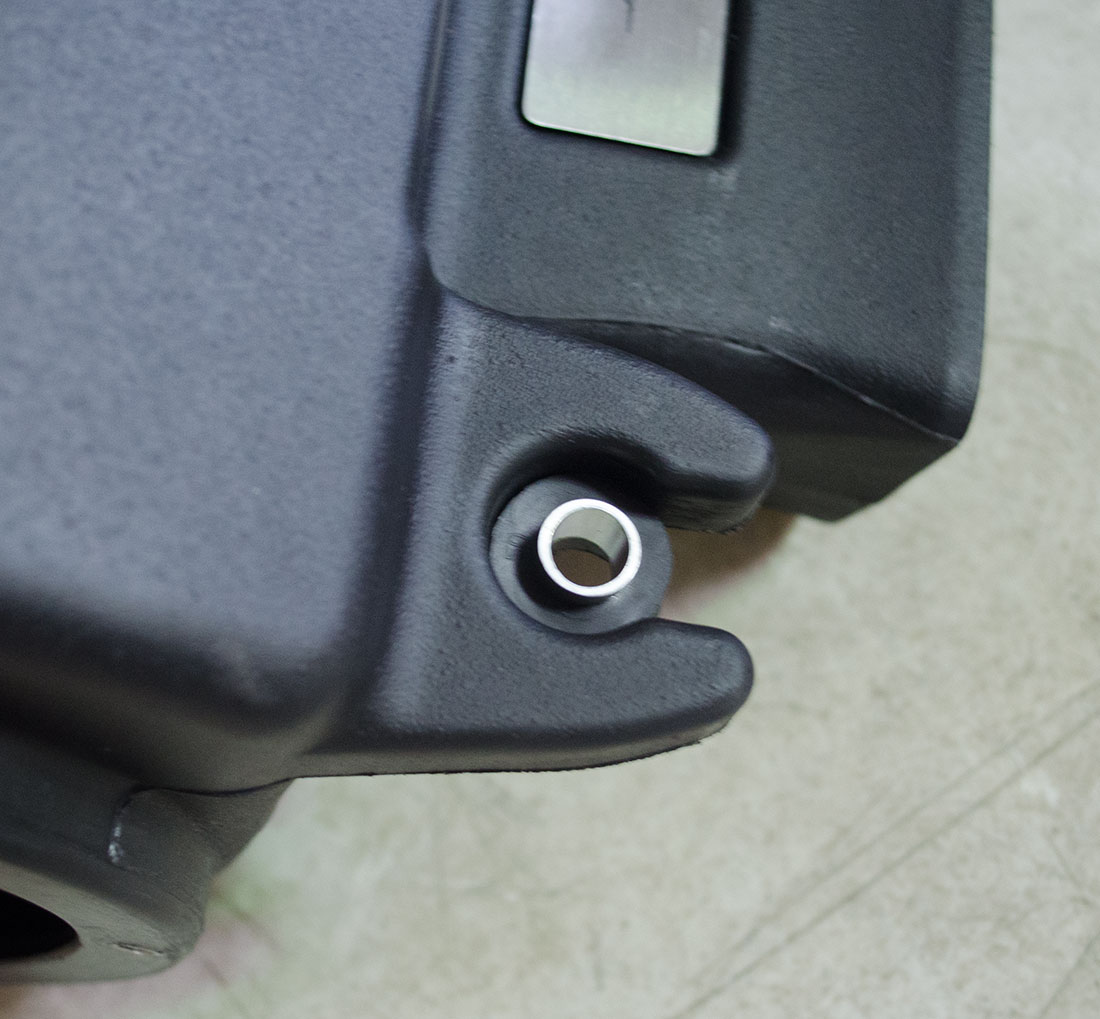

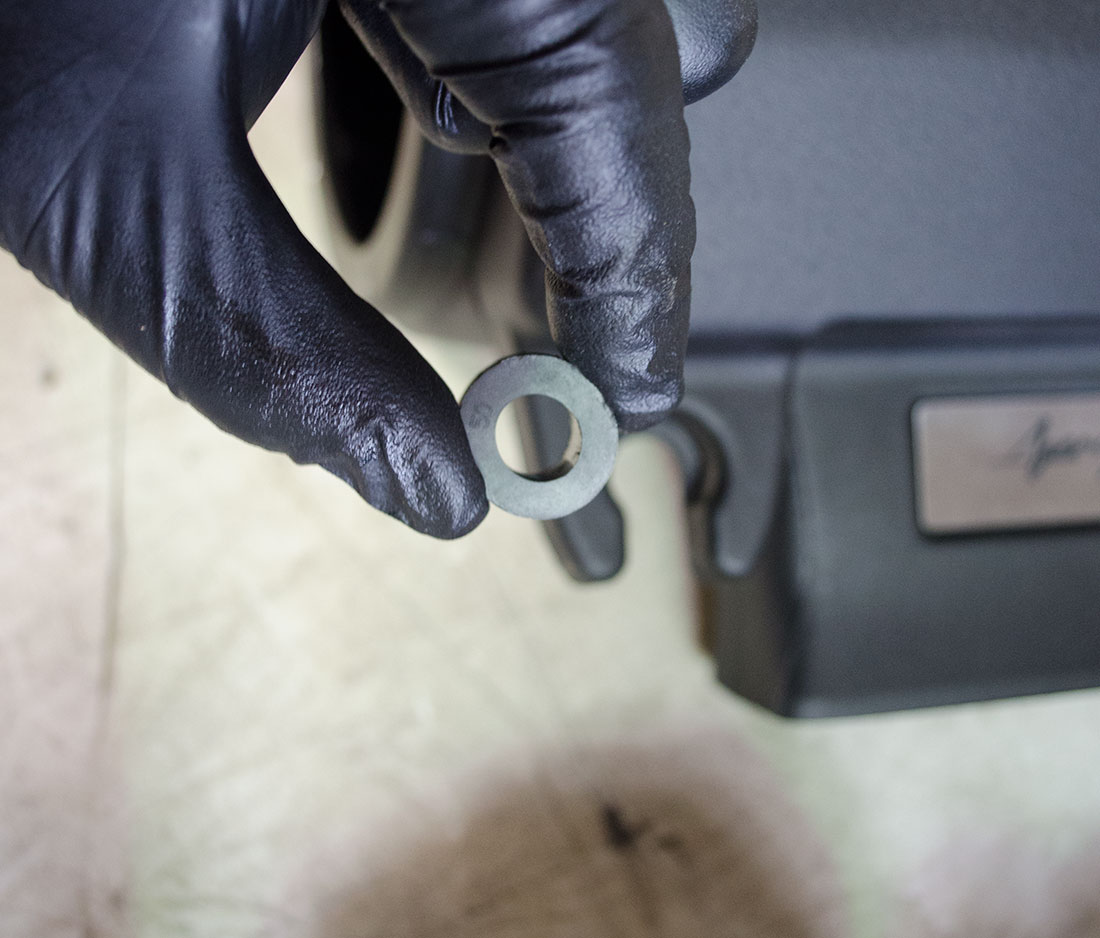

STEP 3) Remove the 2 bolts securing the airbox. Pull the airbox from the car and remove the rubber grommets to swap to the new intake box. (Push steel sleeve out and grommets with then slide out.)

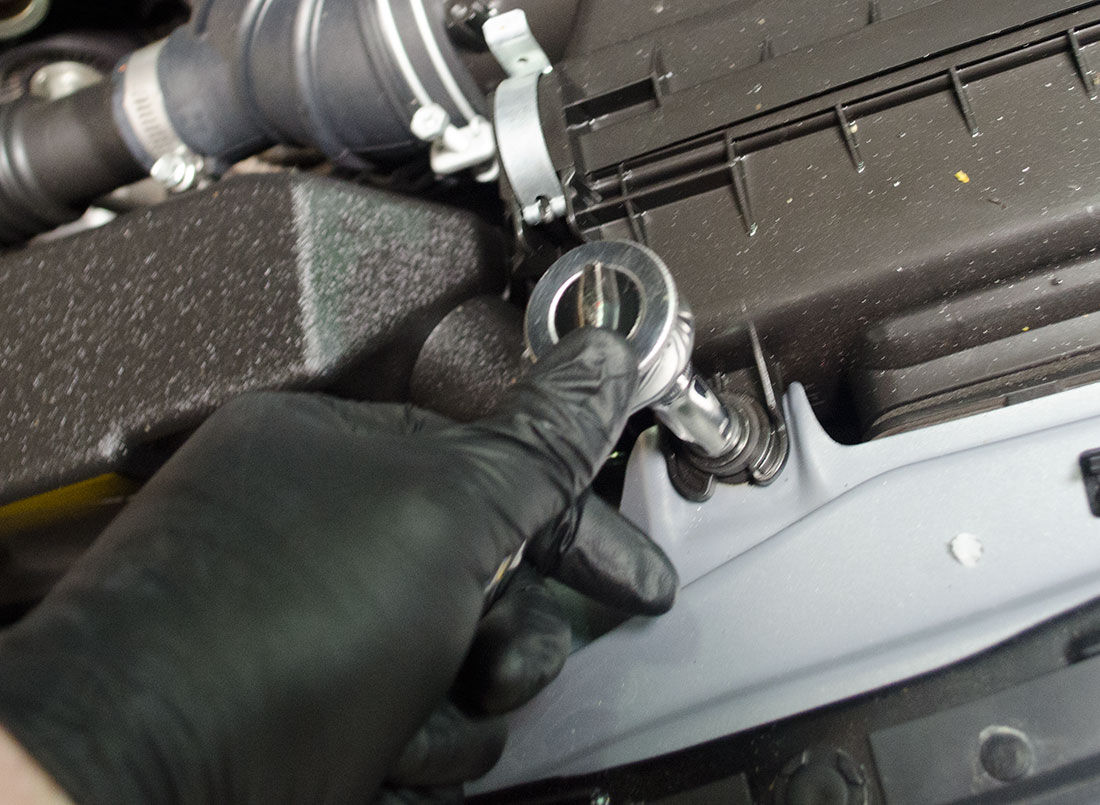

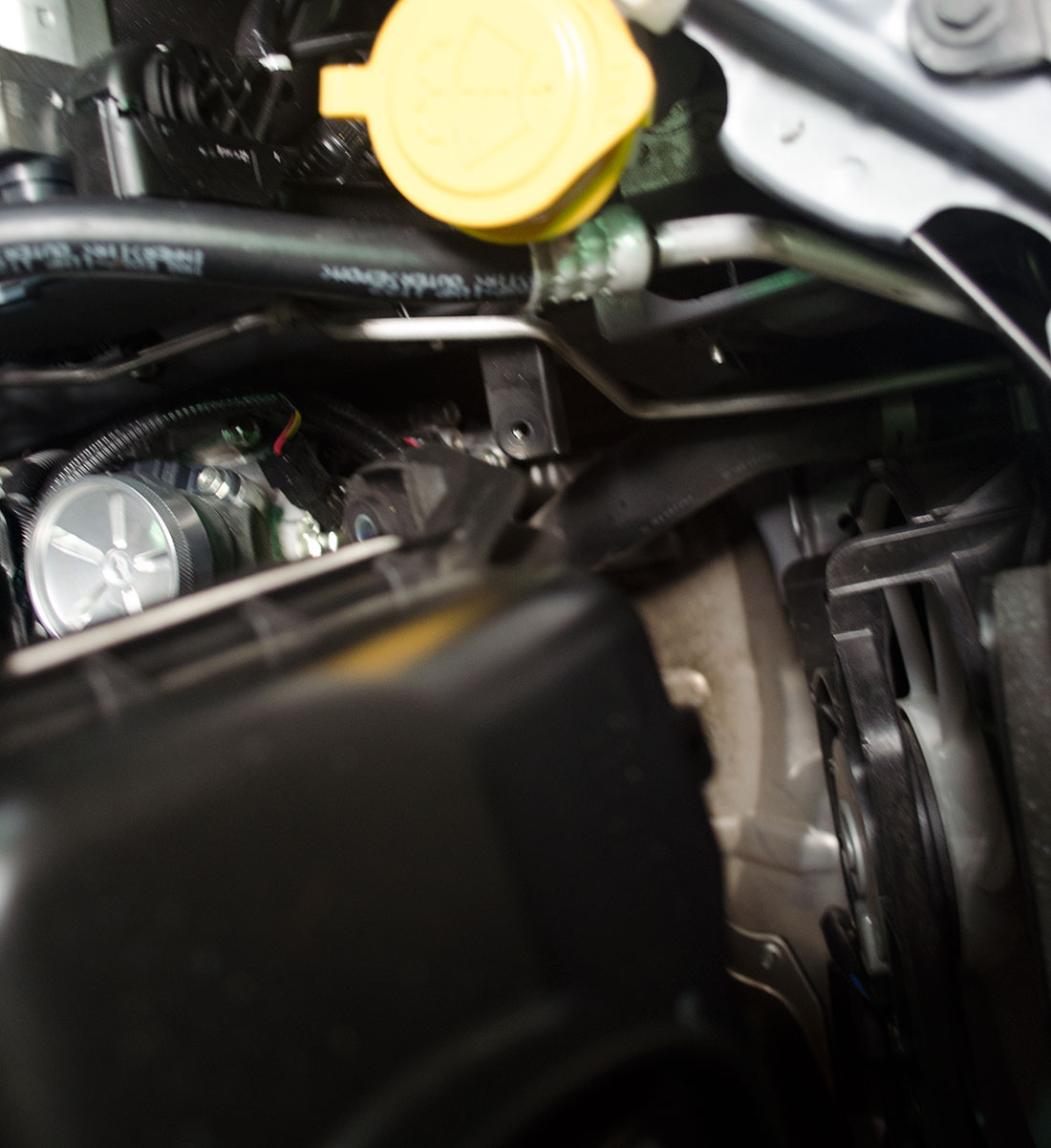

STEP 4)  Place the new airbox into the engine bay. Very tight fit. Bolt the airbox down with factory bolts. Start with the back bolt to tighten then move to the front bolt.

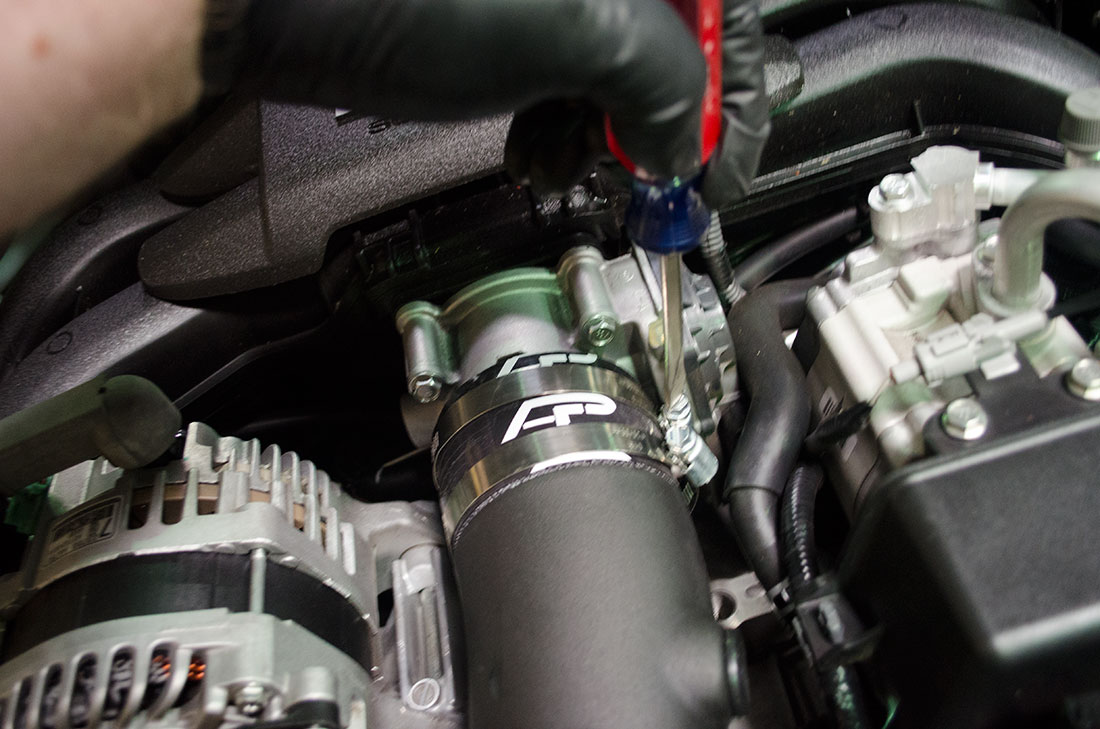

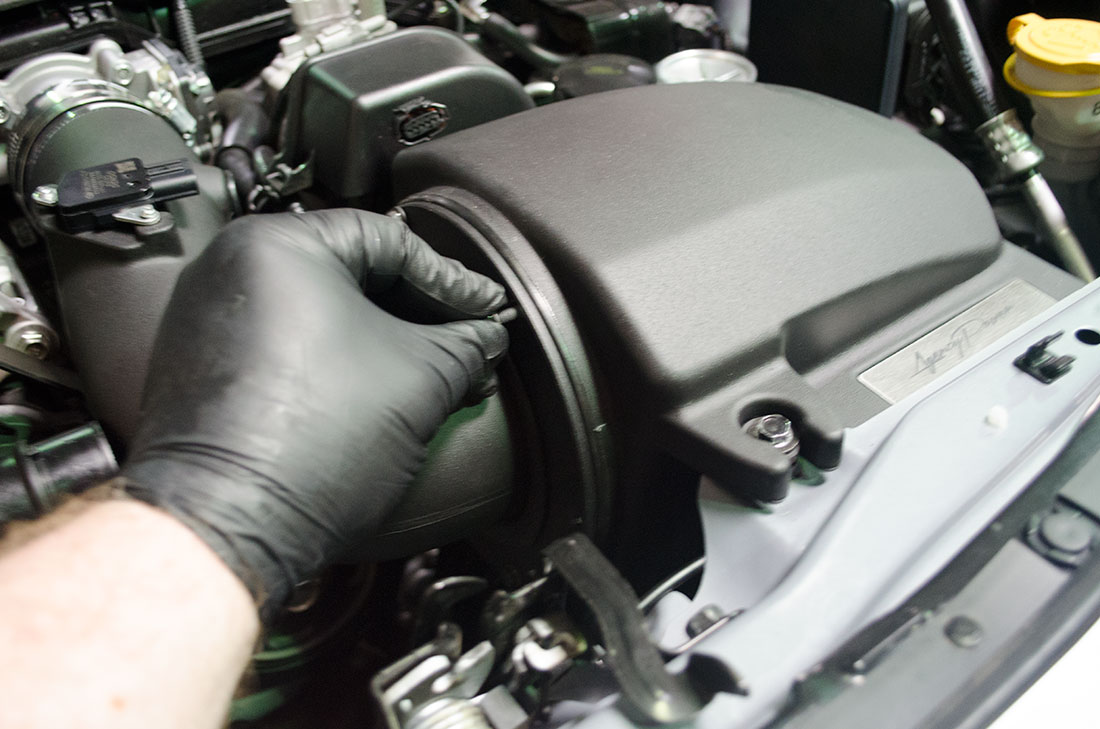

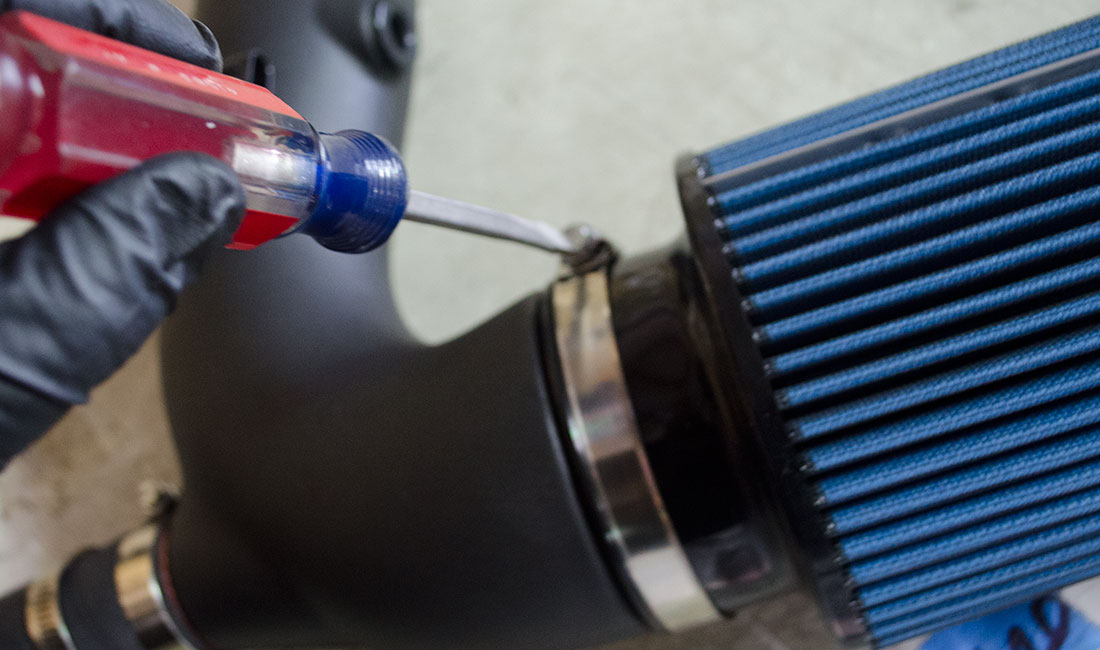

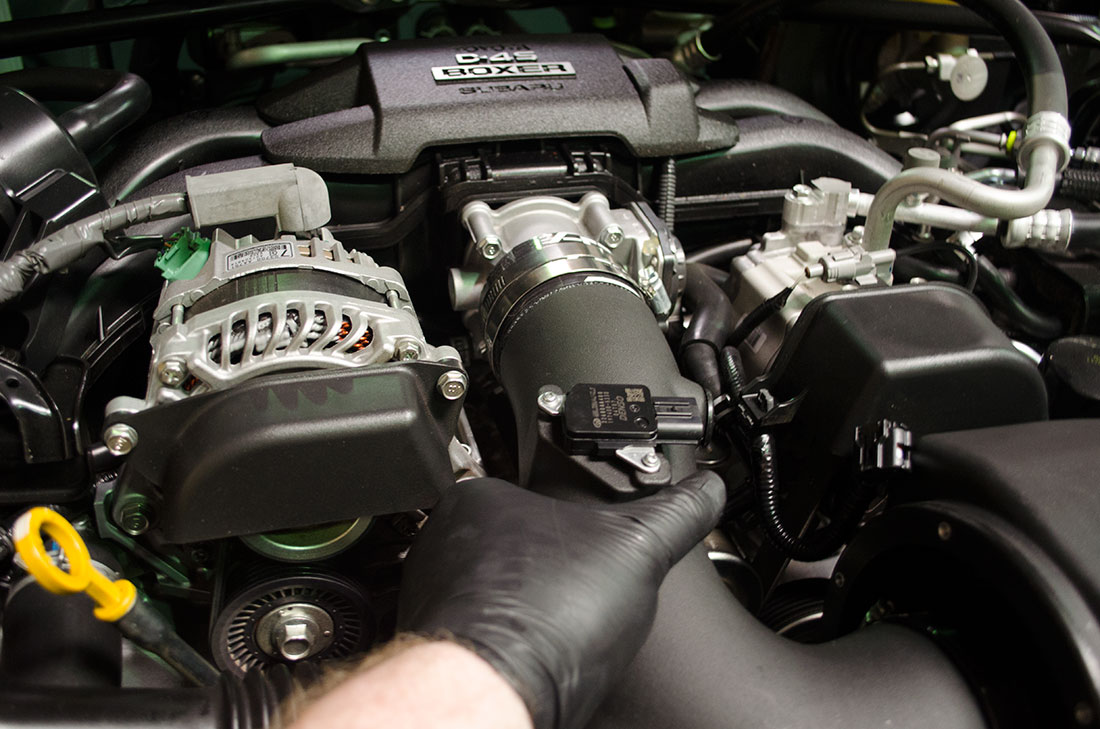

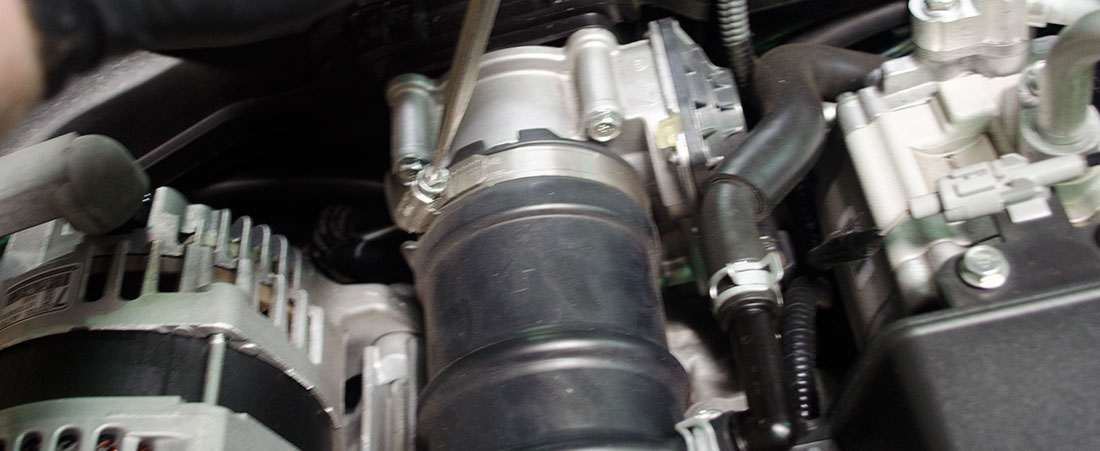

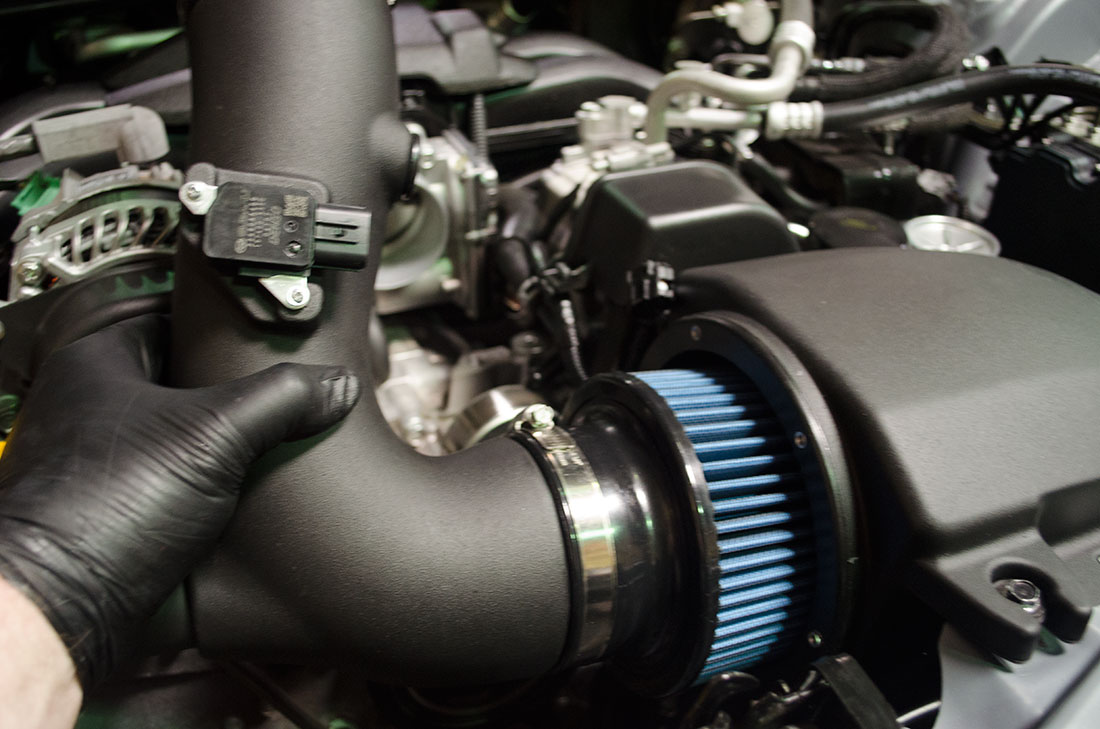

STEP 5)  Install air filter and couples on to intake tube for best fit. Place filter end into the airbox and bolt half of the shield into place. Secure the throttle body coupler and tighten. Install the second half of the shield and tighten bolts.

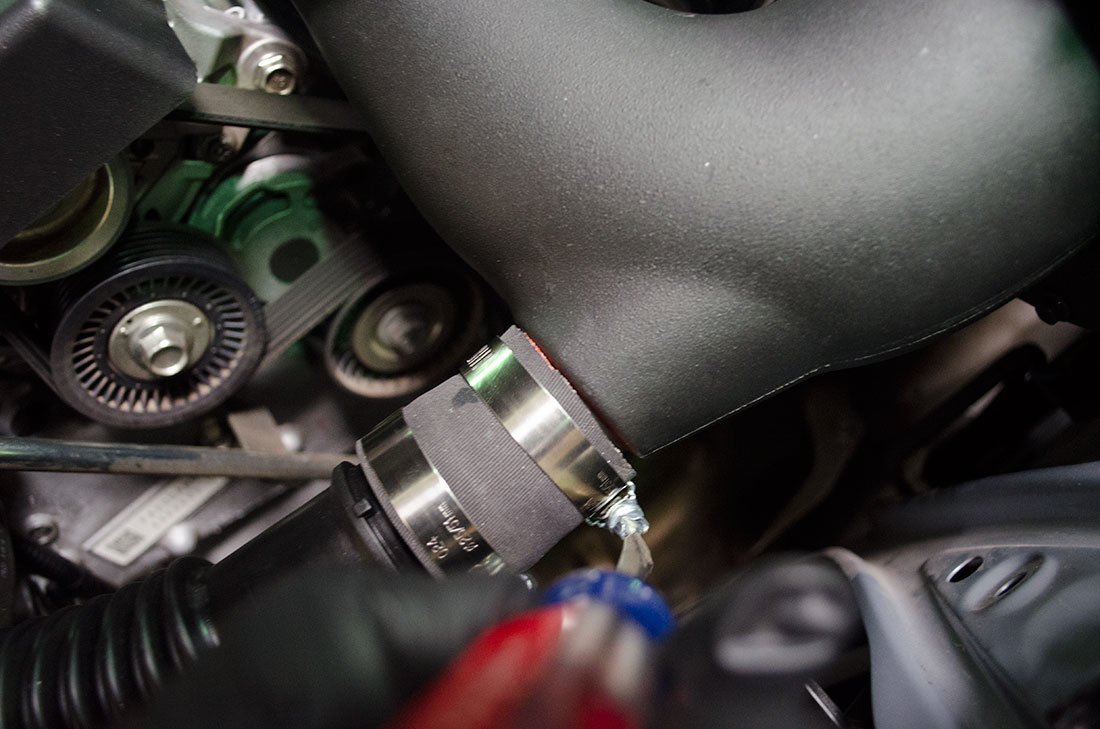

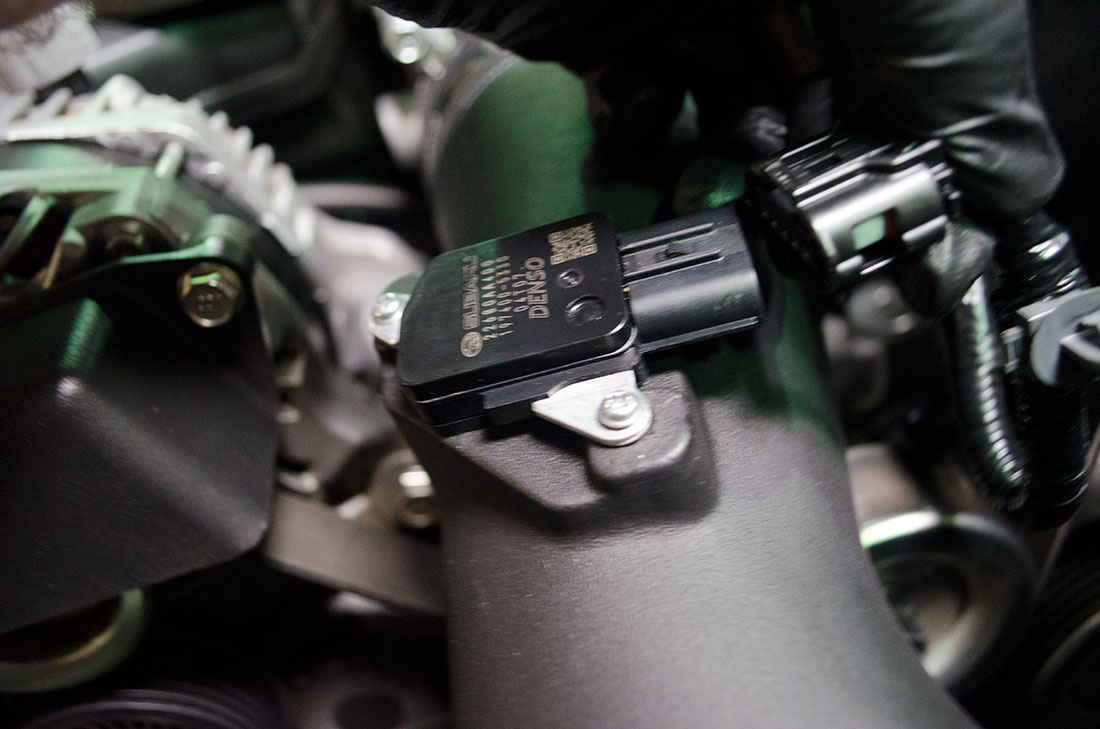

STEP 6) Tighten up throttle body coupler, air sound tube couplers, re-install vent tube into the grommet, and clip mass airflow harness together.

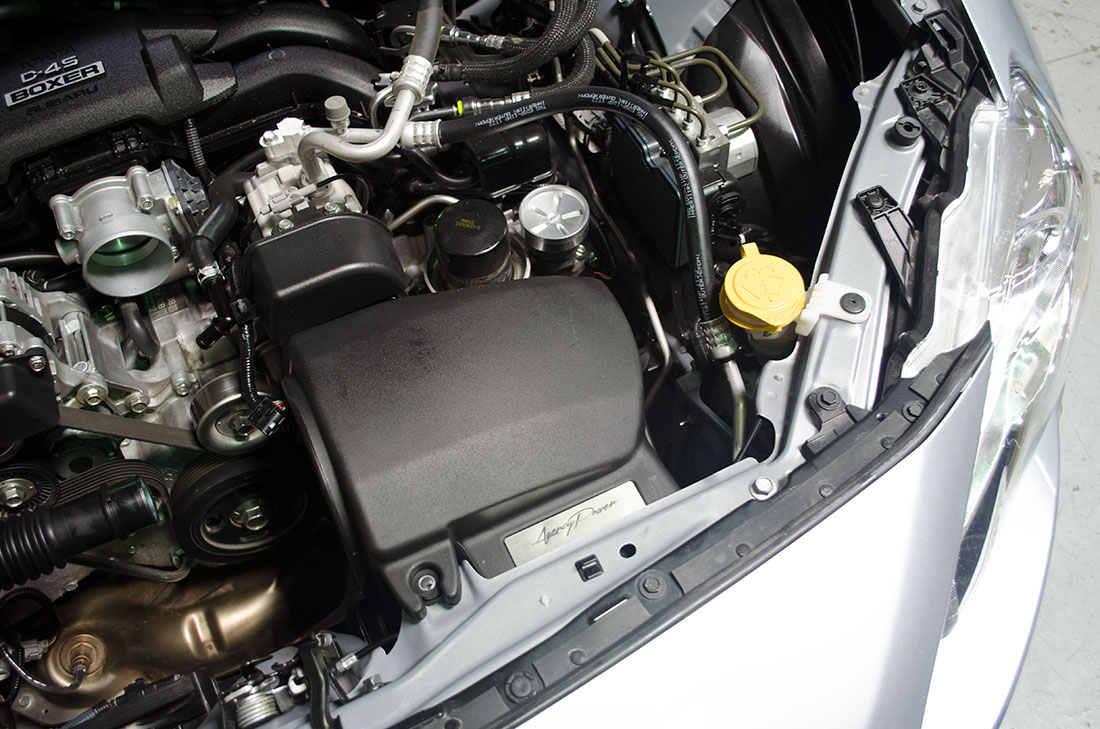

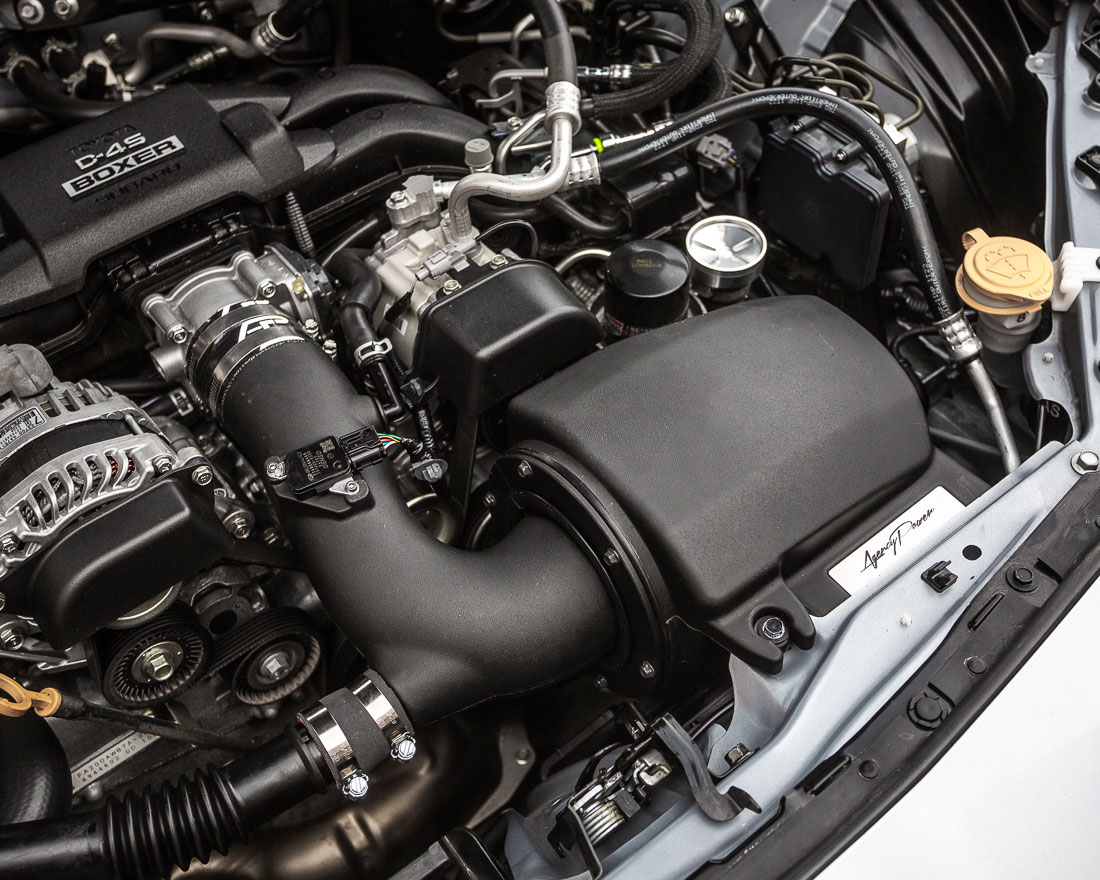

Finished – Install Complete
