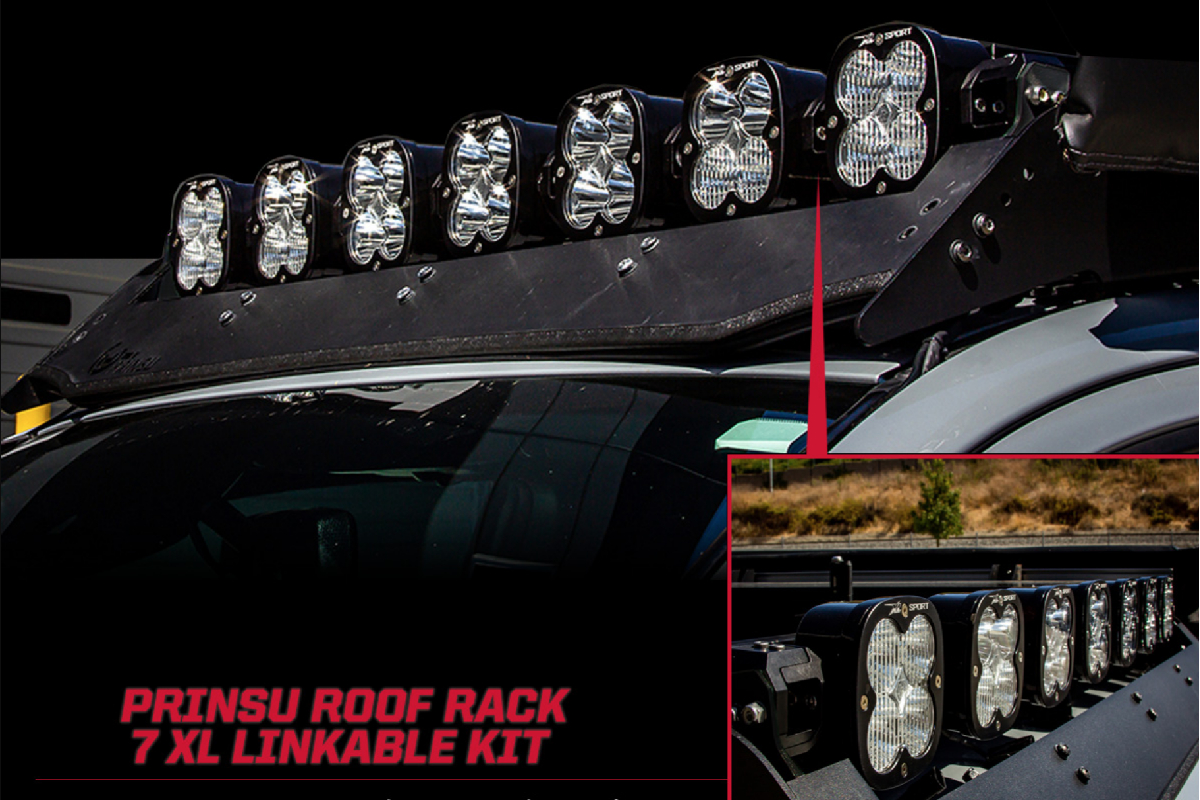

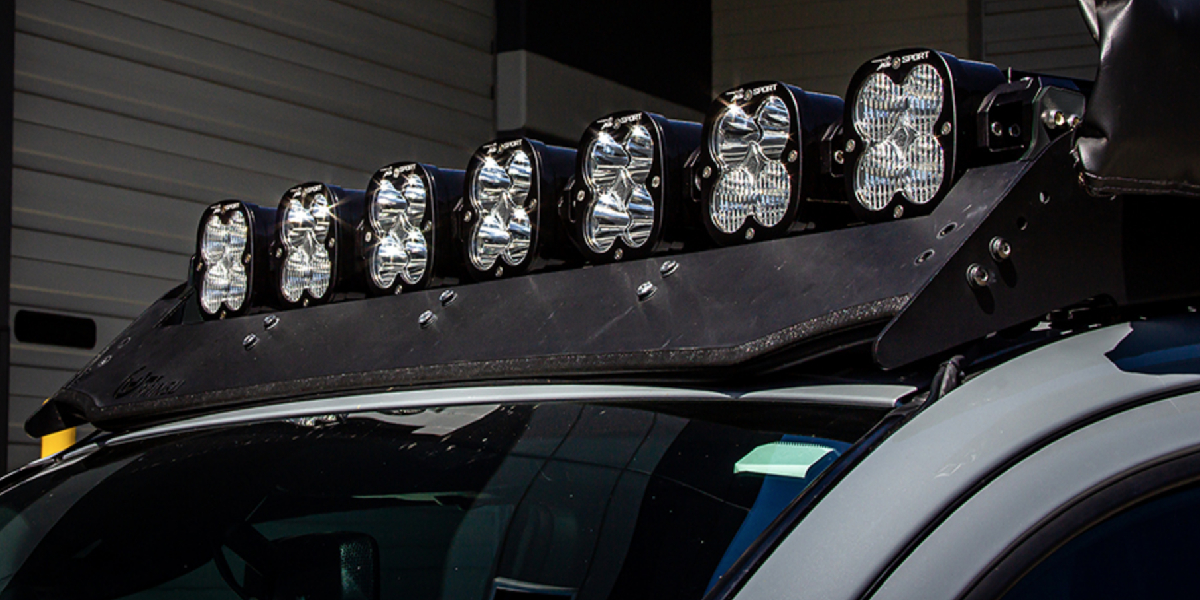

The off-road lighting experts over at Baja Designs have just released the 7 Light XL Linkable Kit for Prinsu roof racks now available for purchase. If your vehicle is equipped with a Prinsu roof rack and you have been in the market to mount an LED light bar on it, this is the product for you. The Prinsu racks come with the option for a 40-inch light bar cutout, and users who have this option can use the new Baja Designs’ turn-key kit that comes with everything you need to get a top performance-based lighting solution.
The Baja Designs’ 7 Light XL Linkable kit delivers a crisp 22,050 lumens. In terms of hardware and accessories, it includes all of the necessary brackets that are proprietary to Prinsu’s roof rack design, all required hardware, a relay harness for the XL Linkable, and Rock Guards. This is an all-inclusive kit that will complement your Prunsu rack and give you some impressive nighttime lighting performance all in an attractive and fully functional package.
View Full Baja Designs Inventory Here
This linkable light bar kit delivers the following lighting patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
High-Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Baja Designs Features:
- Satisfactions Guarantee – 30 Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It.
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 22,050 Utilizing 28 LEDs
- Wattage/Amps: 182W / 14A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Application: This kit will work with any Prinsu roof rack.
Note: If you did not purchase a rack with the 40-inch light bar cutout option we have included instructions on how to cut your existing panel.
Includes:
- x3 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x7 XL Sport Rock Guards
- Pre-load Center Bracket
- Prinsu-Specific Brackets (304 Stainless Steel)
- XL Linkable Harness
Learn More and Purchase the Baja Designs 7 Light XL Linkable Kit Here.
If you have any questions about Baja Designs, please feel free to contact our team. You can reach us by phone at 1-480-966-3040 or via email at sales@vividracing.com.
