Over the past 45 years, CSF has grown to become a solid market leader with best-selling radiators and other products for a wide range of vehicles. Its radiators and heat exchanges are widely recognized for their innovative designs and impeccable quality. CSF has worked through and through to master the charge-air cooling system, like the one found in the new AMG models. The system features a water circuit that flows through the vehicle’s charge cooler(s) and a heat exchanger, which uses the water to cool the compressed air.

With that said, CSF is starting out another new year with a bang, and this time, it comes in the form of two new AMG cooling products for the Mercedes-Benz E63/CLS63/M157 vehicles. For those who have been following CSF’s journey, you will see that the brand has emerged in the AMG market with its W205 C63 AMG Heat Exchanger and that it quickly became a number one seller. So CSF took its momentum and created an entire Mercedes-Benz AMG cooling line for its customer base. The two new products are the M157 Auxiliary Radiator and a Front Mount Heat Exchanger for the E63 and CLS 63.

Click Here To View CSF Catalog

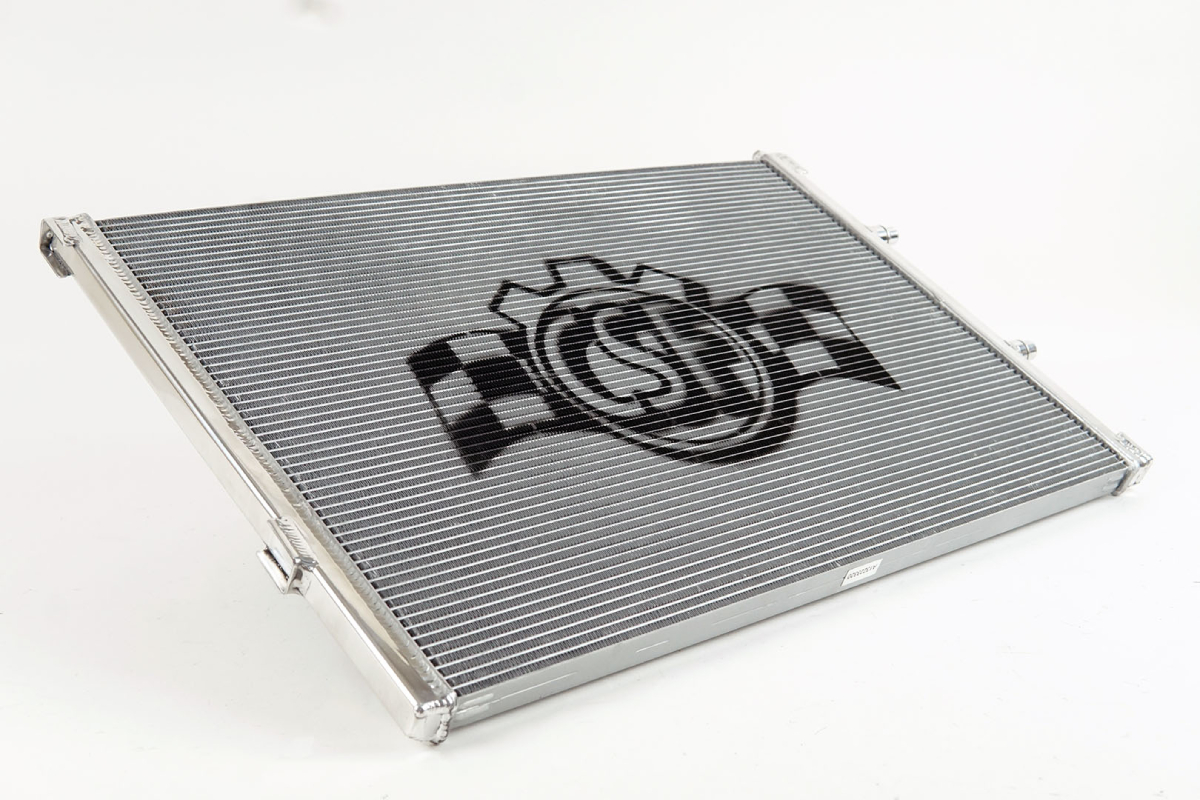

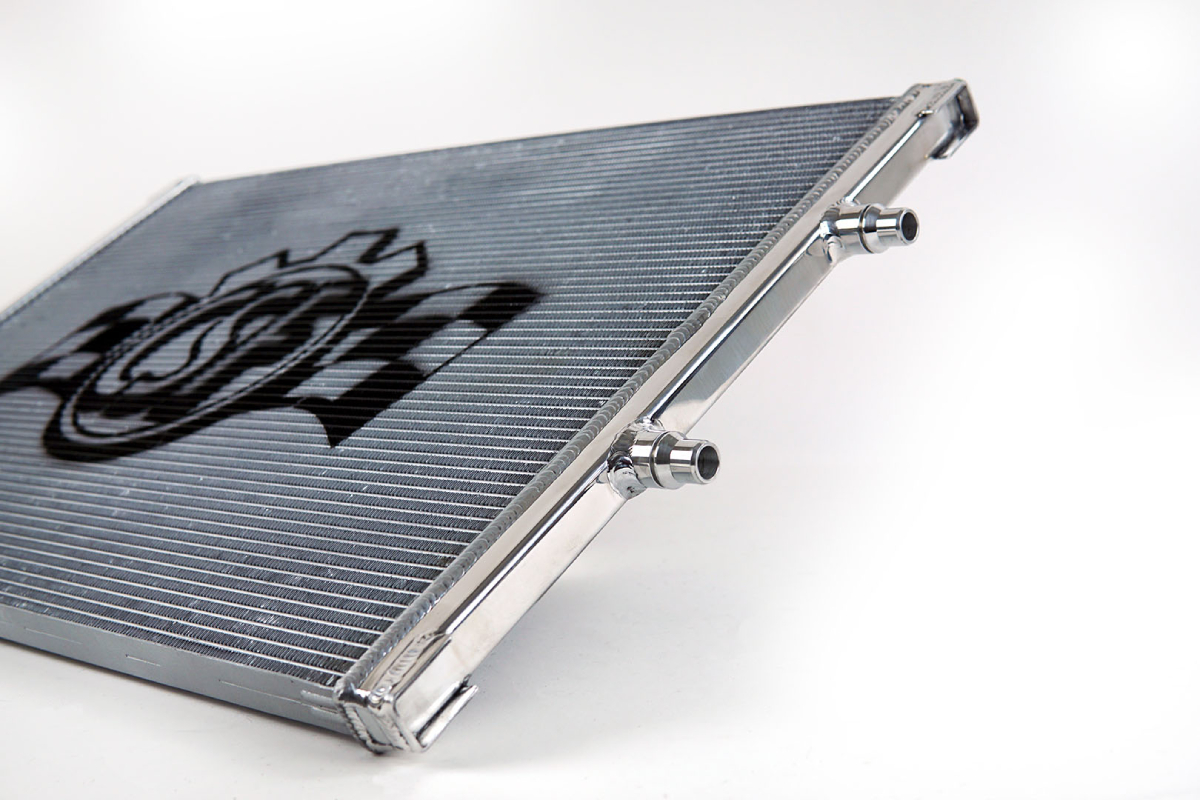

E63/CLS63 Front Mount Heat Exchanger (CSF #8197)

Upgrading to a larger and more efficient heat exchanger affects the rest of the charge-air cooling system. Benefits include lowering IATs (intake air temperatures) and, thus, creating cooler, denser air for increased power and an improvement in heat soak reduction.

Features:

• 1 Row, 23mm Super-High Efficiency Core w/ CSF’s Exclusive B-Tube Technology
• Over 40% More Tubes Than The OEM Heat Exchanger, Resulting in a Core Efficiency with Over 300% Increase in Flow Area and Twice the Cooling Performance
• Ultra-Efficient, 5mm Tall Multi-Louvered Fins for Maximum Surface Area Contact
• 100% All-Aluminum TIG-Welded Construction
• Individually Leak and Pressure Tested
• CNC Machined Brackets and Fittings

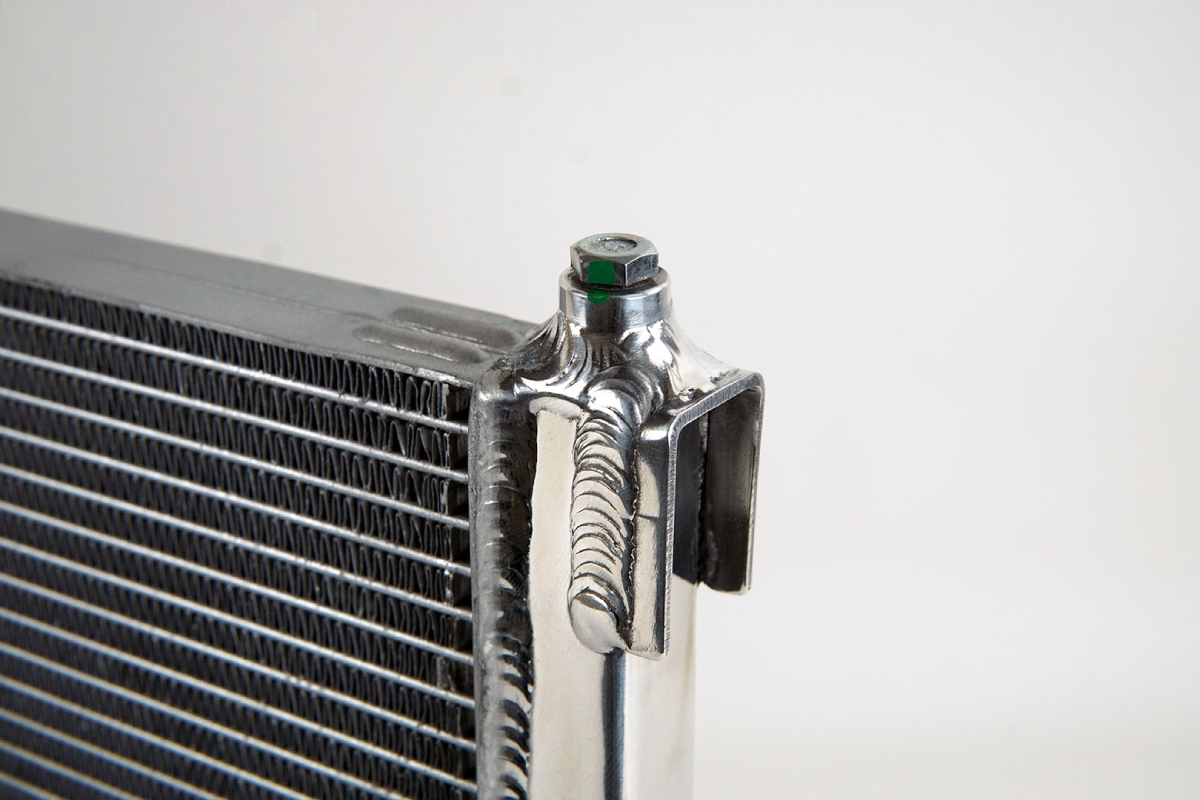

• Integrated All-Aluminum Race Style Bleeder Screw
• 1-Hour “Mirror Finish” Hand Polish
• True “Drop-in Fit” Requires No Modifications to Install

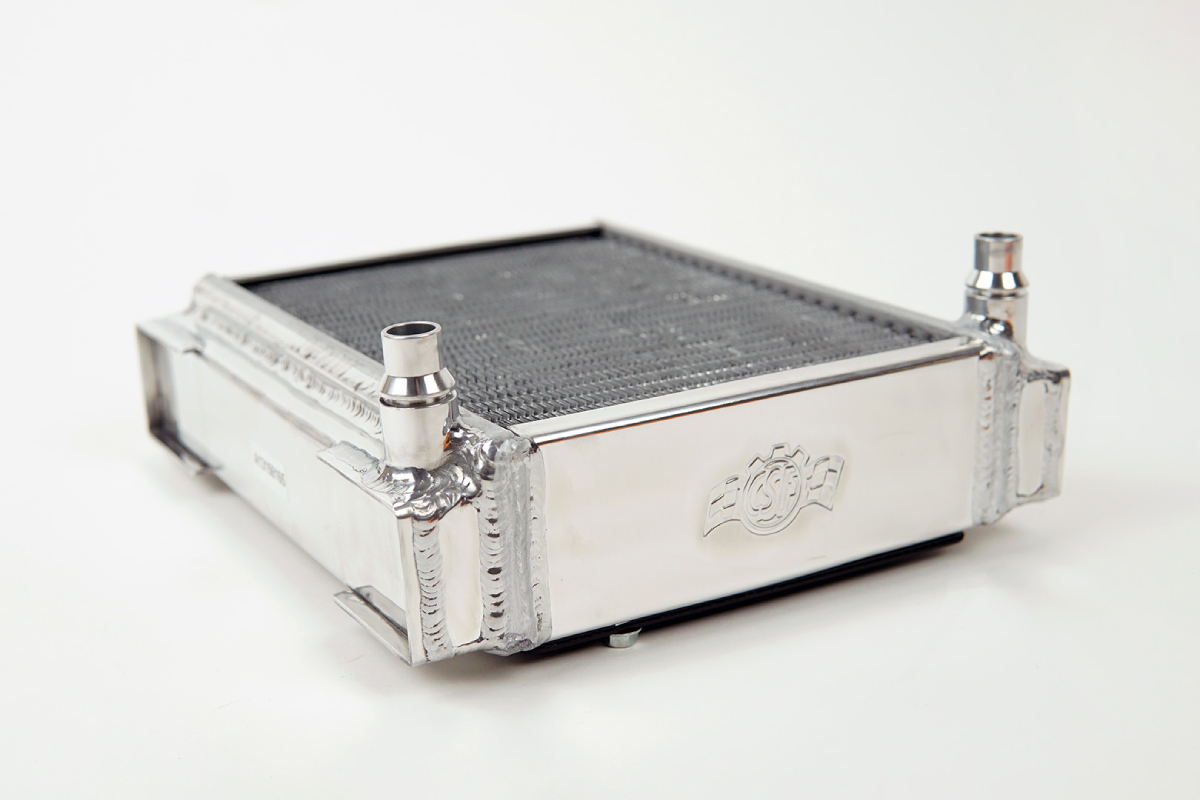

M157 Auxiliary Radiators (CSF #8198)

The CSF high-performance auxiliary radiators work together with your car’s entire cooling system to reduce temperatures. Not only do they help to keep temperatures in optimal ranges, – thus prolonging the heat soak threshold – but they also can be used as the heat exchange medium for the charge cooling system. The included detachable rock guard offers additional protection against the nasty build-up of debris, as well as the possible core punctures. OEM auxiliary radiators, on the other hand, have minimal protection against the elements.

Features:

• 2-Row 68mm High-Performance Core w/ CSF’s Exclusive B-Tube Technology vs (OEM 1-row 42mm core) – The Industry’s Highest Capacity Offering!
• Ultra-Efficient, 6.5mm Tall Multi-Louvered Fins for Maximum Surface Area Contact
• 100% All-Aluminum TIG-Welded Construction
• Individually Leak and Pressure Tested
• CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet
• 1 Hour “Mirror Finish” Hand Polish
• Includes Detachable Rock Guard
• Multi-Fit – Fits Both Left & Right Side (Sold Individually)
• True “Drop-in Fit” Requires No Modifications to Install
