Increase Performance by Lowering your Intake Temperatures
Perrin has just announced the release of its new 2015-2017 Subaru WRX / STI Front mount intercooler kit. This packaged kit allows users to relocate their factory top mount unit into a front mount intercooler. This kit helps to provide more surface surface area at the front of the vehicle for fresh air to pass through. In turn this allows the vehicle to have lower intake temperatures and with help with engine performance.
The factory top mount is great for instant power, but after a few hard runs it becomes heat soaked and actually degrades performance. While a front mount has a slightly longer intake path, it provides consistent cooling over an extended period of time. Due to its design, the intercooler piping will get in the way of some factory components. To remedy this Perrin gives you a new coolant tank and windshield fluid tank to allow for a seamless installation.
For more information on this front mount kit, specs and product links are provided below. You can also give us a call at 1.480.966.3040 and a performance specialist will be able to assist you with any details you may need. For additional support after hours, please email Sales@vividracing.com with any questions or ordering details.
| PSP-FMI-KIT-STI |  |

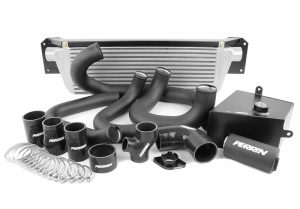

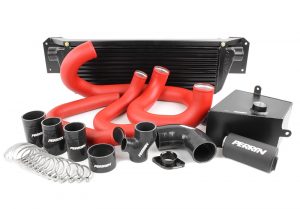

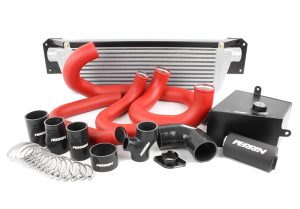

Perrin Front Mount Intercooler Kit Subaru STI 15-17 | |
 |

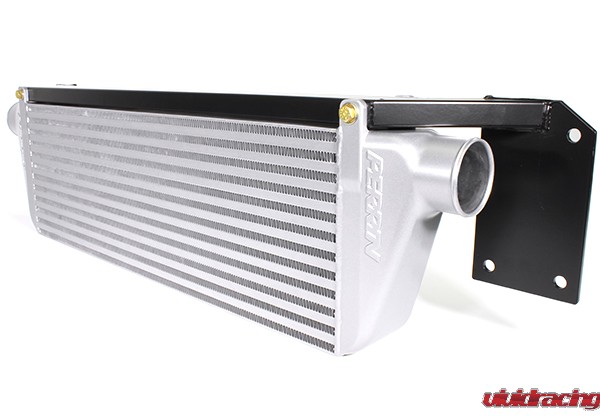

INTERCOOLER SUPPORT BEAMS
Our intercooler support beam is constructed from boxed steel and powder coated black.The installation of the PERRIN Front Mount Intercooler for 2015-2017 WRX does not require the removal of the driver-side bumper beam support

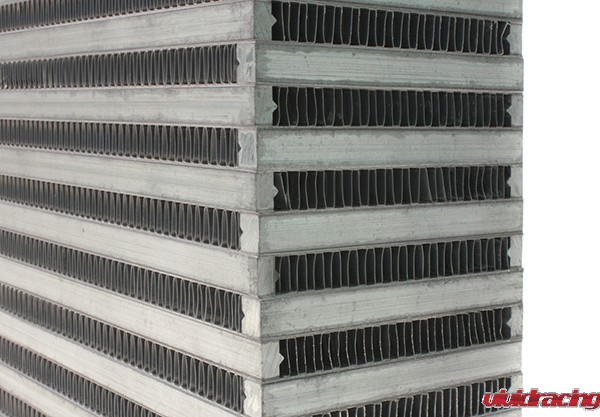

INTERCOOLER CORE
The most important part of any intercooler system is the core. The core cools the charged air on the way to the engine. The factory Subaru tube and fin intercooler was designed to be easy to manufacture, but is not good for performance.
Our testing has shown the optimum core design is the 3/8” bar and plate style that has a 3/8” charge air and ambient air path, instead of the common 1/4” size. The PERRIN bar and plate core design is much more durable than tube and fin with the ability to withstand rocks and other debris, which may enter the scoop. The PERRIN intercooler core is 28” long x 9.25” tall x 3.5” deep with a volume of 906.5 cu-in. giving the PERRIN Intercooler the best overall design for cooling and pressure drop!
FINISH
Every PERRIN intercooler is powder coated to further protect your intercooler from the elements making it look awesome for years to come. Our intercoolers come in two finish options, a bright silver or stealth black powder coat.

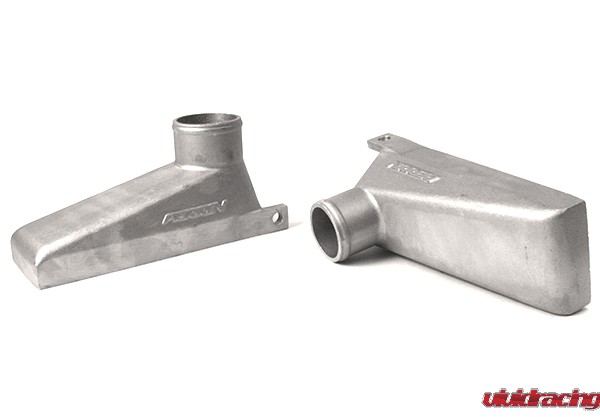

CAST END TANKS
The PERRIN designed end tanks control for near perfect dispersal of hot air across the intercooler core. By eliminating any 90º corners adding a smooth, and gradual taper from top to bottom turbulence is eliminated. Each end tank incorporates an innovative mounting tab to secure the core to the mounting beam.

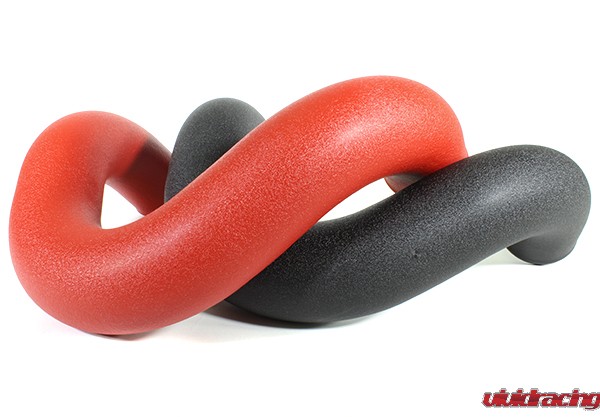

BOOST TUBES
PERRIN boost tubes are CNC mandrel bent from aluminum tubing for better weight reduction. Every boost tube has an over sized beaded end to ensure the hose clamps and couplers stay connected and sealed! We choose to take the smoothest shortest path to get air to and from the intercooler.
Right off the turbo a smooth offset coupler carries the hot side air charge to a perfectly matched 2.25” boost tube. We chose 2.25″ tubing for a smoother, cleaner, obstruction free routing while still being large enough to flow more WHP than most turbos can put out. The air charge then is routed through the engine bay next to the battery, and down behind the radiator to the intercooler. The cold side boost tubes are mounted as high as possible in the engine compartment to clear all turbo and intake combinations as it travels to the throttle body through the engine bay.

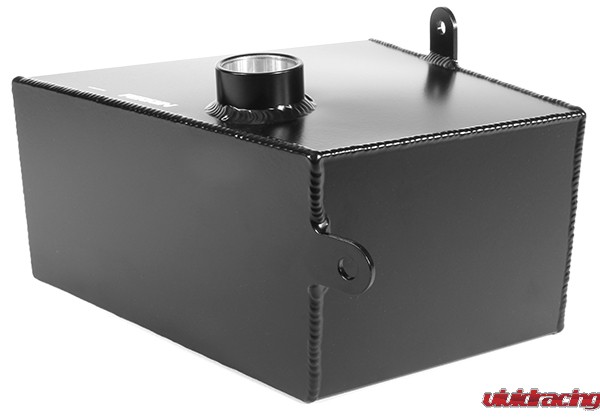

UPGRADED WASHER FLUID TANK
The PERRIN Front Mount Intercooler kit includes a PERRIN Washer Fluid Tank. How the boost tubes are routed through to the intercooler, the OEM tank conflicts with the space required. The PERRIN Washer Fluid Tank is protected from the elements by a black powder coating finish. It looks great and makes the silk screened logo pop.
COOLANT RESERVOIR
The PERRIN Front Mount Intercooler kit includes a PERRIN Coolant Overflow Tank. It adds clearance for better boost tube routing, holds more coolant than previous designs and uses the OEM tank cap for a great seal! The PERRIN Coolant Overflow Tank is protected from the elements by a black texture powder coating.

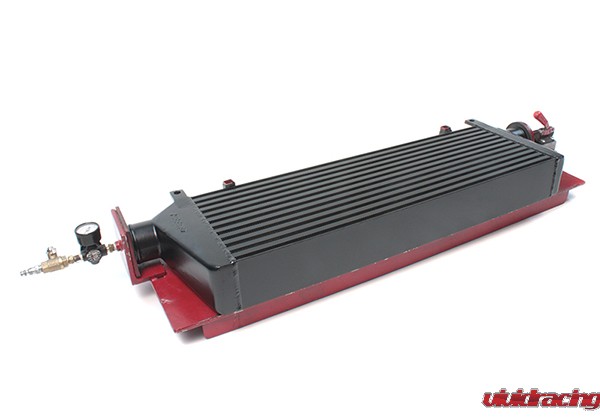

PRESSURE TESTING
PERRIN is one of the only intercooler manufactures who pressure tests every intercooler. We pressurize every intercooler to 50 psi. on our special jigs. This ensures you never get a core with a leak! Even the slightest leak can cause your vehicle to lose power, literally bleeding turbo boost pressure out the intercooler.
WEIGHT
The PERRIN Front Mount Intercooler kit only adds 9lbs of weight! If you take all the factory pieces you remove and compare them to the PERRIN parts you are installing, you will find you only added 9lbs!
