Voodoo 13 takes the feedback it collects from top-tier drivers and technical directors and applies it to its products in order to raise the standards in racing suspension. All Voodoo 13 products are built to last and withstand abuse from both street cars and track cars. The company’s latest product release includes suspension components for the Infiniti Q50 and Infiniti Q60. Among these new parts are adjustable rear traction arms, adjustable rear toe arms, adjustable rear camber arms, and adjustable rear sway bar end links.
Click To View All Voodoo 13 Products Here.

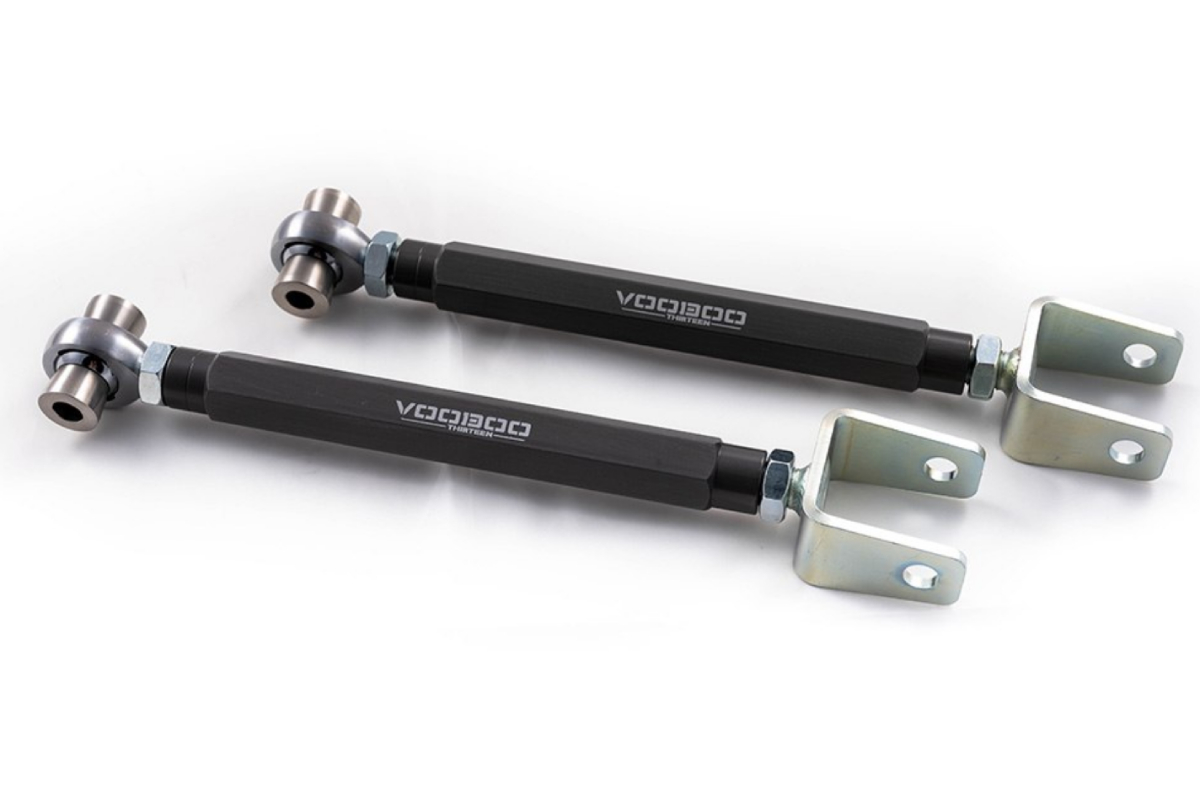

The Voodoo13 Infiniti Q50/Q60 Adjustable Rear Traction Arms are manufactured right here in the USA and adhere to industry-leading quality control standards. Voodoo 13 precision CNC machines the adjusting rod from high-strength 6061-T6 aluminum and then treats it in a MIL-A-8625 Type III hard-anodized coating. The steel bracket is CNC manufactured with TIG welded construction for added durability. Grade 8 zinc-coated hardware is also used to protect against any potential elements. Stainless steel spacers are made in-house to perfectly fit into the heim joints.
Features:
- 11 Total degrees of adjustment
- Billet hex construction for ease of adjustment at different angles
- Billet hex construction to maximize tensile load exerted throughout the arm
- Properly calibrated design to ensure proper balance is provided to the overall chassis
- Metal to metal support for heavy shock loads
- Increased cross-sectional thickness for superior tensile strength

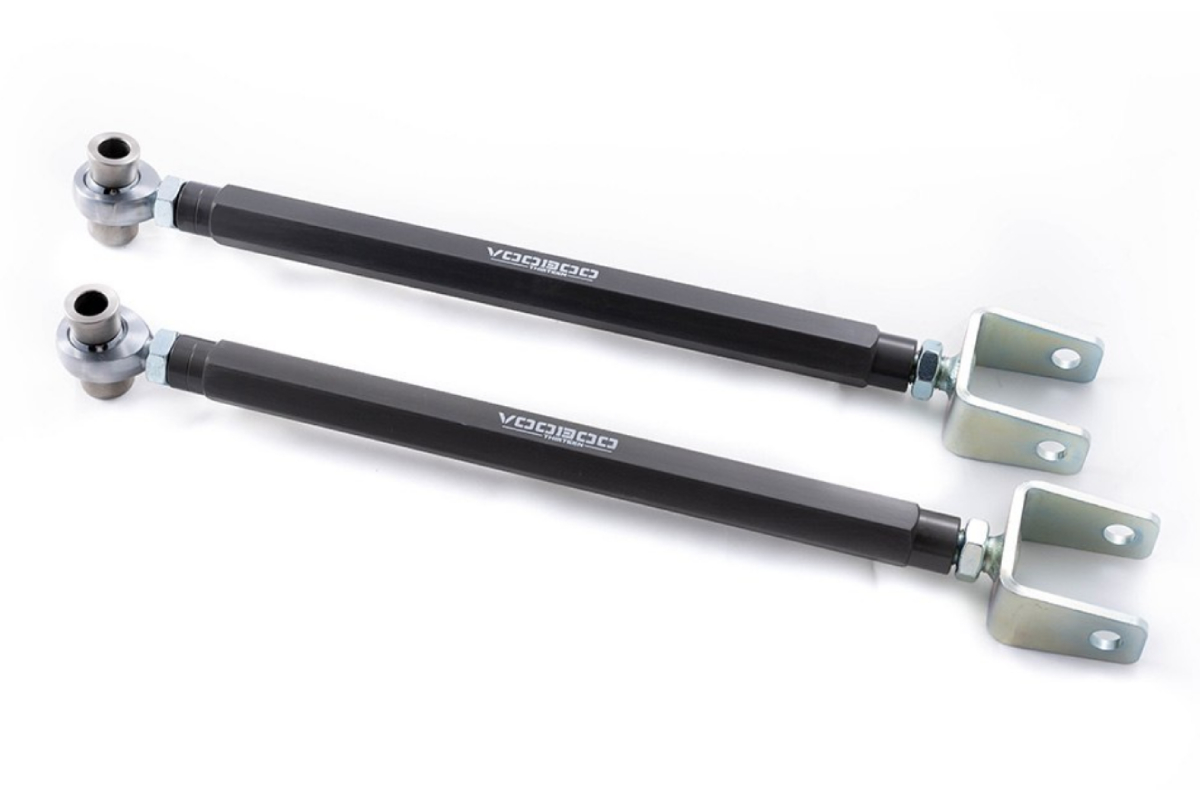

With -6 to +6 degrees, Voodoo13 Infiniti Q50/Q50 Adjustable Rear Toe Arms offer the adjustability required to get your rear toe back to spec after lowering your car. These rear toe arms are expertly engineered and designed for high-performance street and race vehicles. They replace the soft rubber OE bushing with a rigid spherical bearing for improved handling and performance.
The Voodoo 13 adjusting rod is crafted from 6061-T6 aluminum to ensure that the arms are incredibly strong and lightweight. The MIL-A-8625 Type III hard-anodized finish is available in three colors: Hard Clear, Black, and Hard OD Green. CNC stainless-steel spacers are machined at Voodoo 13’s Arizona facility and work in conjunction with high-quality American-made QA1 spherical rod ends. Grade 10.9 zinc plated hardware is included for installation.
Features:
- 11 Total degrees of adjustment
- -6 to +6 degrees of toe arm adjustment relative to stock alignment
- Billet hex construction for ease of adjustment at different angles
- Billet hex construction to maximize tensile load exerted throughout the arm
- Properly calibrated design to ensure proper balance is provided to the overall chassis
- Metal to metal support for heavy shock loads
- Increased cross-sectional thickness for superior tensile strength
- Fully rebuildable

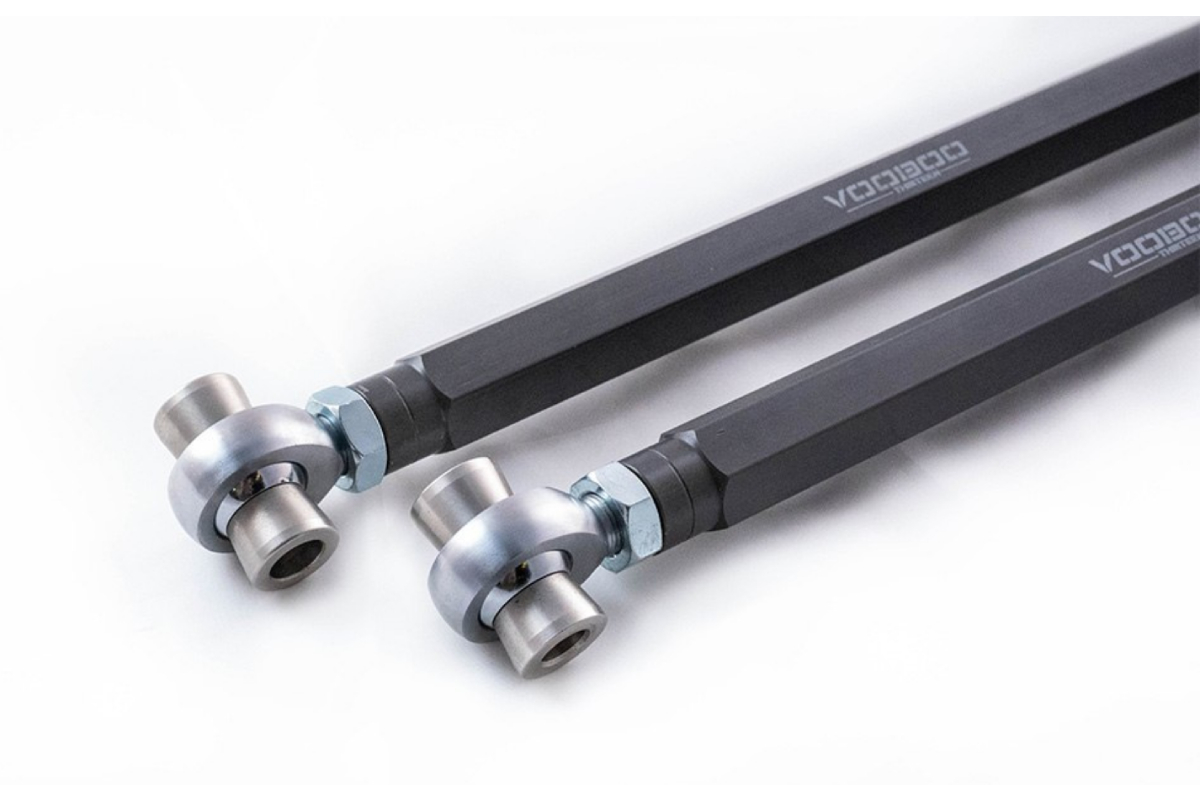

The Voodoo13 Infiniti Q50/Q60 Adjustable Rear Camber Arms are crafted from high-strength 6061-T6 aerospace-grade aluminum and featuring self-lubricating and self-sealing USA-made QA1 Nylon/PTFE heim joints. These adjustable rear camber arms offer an adjustment range of -5 to +6 degrees relative to stock alignment, a 25 percent reduction in weight, and increased support for aftermarket sway bars due to increased stiffness. Additional features include zinc-plated steel bracket ends, Type III hard-anodized body rods, and installation hardware.
Features:
- 11 Total degrees of adjustment
- -5 to +6 degrees of adjustment relative to stock alignment
- 25% reduction in weight
- Billet hex construction for ease of adjustment at different angles
- Billet hex construction to maximize tensile load exerted throughout the arm
- Properly calibrated design to ensure proper balance is provided to the overall chassis
- Metal to metal support for heavy shock loads
- Increased cross-sectional thickness for superior tensile strength
- Supports aftermarket sway bar with increase in stiffness

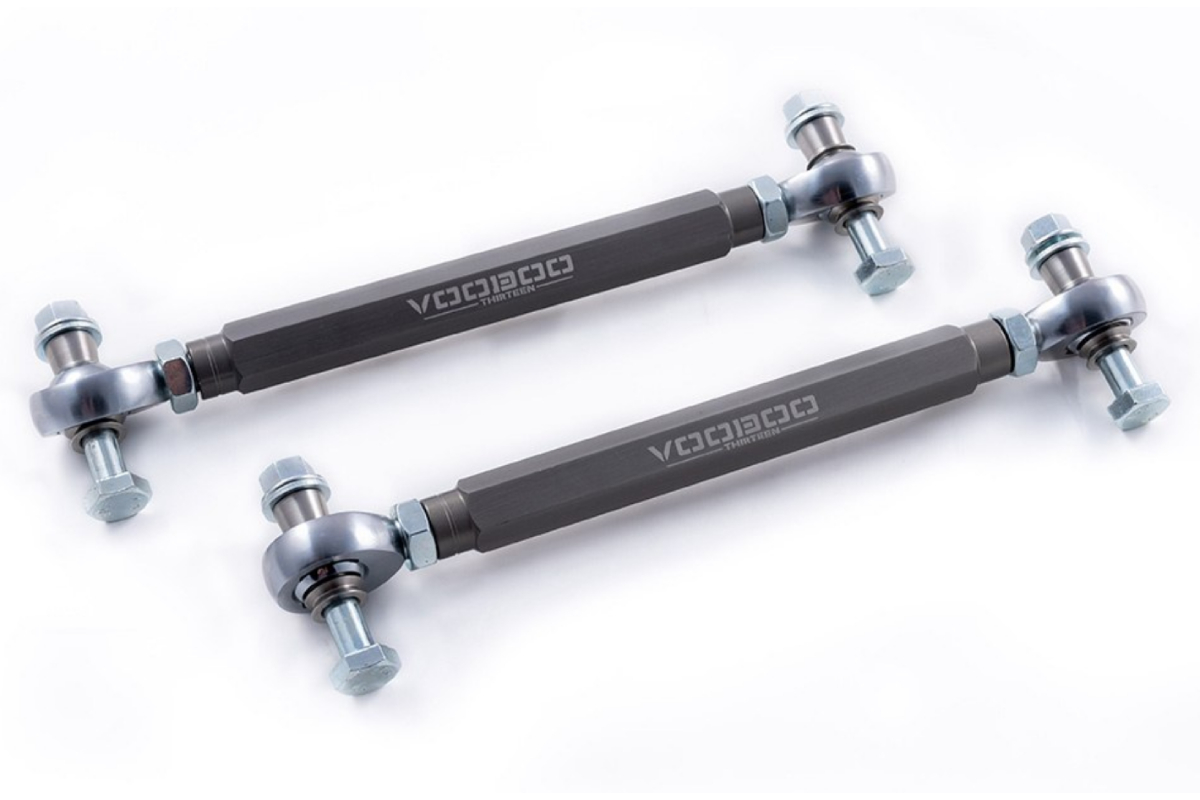

Unlike stock end links, which are weak and often bend or break, the Voodoo13 Infiniti Q50/Q60 Adjustable Rear Sway Bar End Links are designed to handle even the stiffest aftermarket sway bars. These end links prevent binding issues with aftermarket sway bar mounting locations and include high-grade 303 stainless steel misalignment spacers to help you achieve a remarkable degree of misalignment.
In addition, Voodoo 13’s sway bar end links are length adjustable to dial out preload in the sway bars as a result of uneven height or distribution of weight. They feature high-strength grade 10.9 zinc-plated hardware as well as self-lubricating and self-sealing QA1 Nylon/PTFE heim joints that are treated for corrosion resistance and to keep dirt/debris out. The expert engineering of these components results in a much stronger alternative to your Infiniti Q50/Q60’s stock sway bar end links.
Features:
- Eliminate preload on the sway bars
- Allow for proper corner balance adjustment
- Corrects sway bar orientation due to ride height/uneven spring settlement
- Adjustment Ranges: 220 – 190 mm
About Voodoo 13
Voodoo 13 is an aftermarket automotive performance brand that specializes in the production of MIL-SPEC suspension components for both street and track vehicles. Since its inception in 2013, Voodoo13 has set out to combine quality workmanship with military-grade standards to produce high-quality suspension parts that meet the requirements of modern motorsports.
All products are proudly engineered and manufactured at the company’s facility in Mesa, Arizona using only the highest quality materials sourced from U.S. suppliers. What separates Voodoo 13 from the competition is that it’s trusted both on and off the track by professional drivers and enthusiasts alike.
