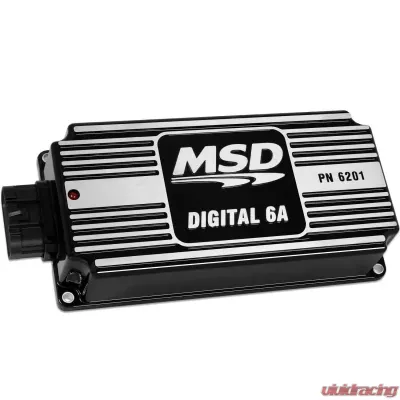

MSD Digital 6A Ignition Control - Black
$307.95
Free Shipping
If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.

The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20? of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.

A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.

Features:
  • Easy starts
  • Smooth idle
  • Quick throttle response
  • Built-in LED for system checks
  • Full, capacitive discharge ignition power throughout the RPM range
  • Compatible with 4, 6 or 8 cylinder engines
  • Tach output wire
  • Sealed, locking connector
Specifications:
  • Brand: MSD
  • C.A.R.B. EO #: D-40-43
  • Color: Black
  • Current Draw: .7 Amp per 1,000 RPM
  • Features: No Rev Limiter
  • Primary Voltage: 520-540 Volts
  • Product Type: Digital 6A Ignition Control Box
  • RPM Range: 15,000 RPM with 14.4 Volts
  • Sale Category: Ignition
  • Secondary Voltage: 45,000 Volts
  • Spark Energy: 135-145 mJ per spark
  • Voltage Required: 12-15 Volts, 7 Volt Start
  • Warranty: Limited 1 Year Warranty
  • Weight and Size: 1.7 lbs., 8"L x 4"W x 1.825"H

Other Part Numbers:
MSD Ignition #MSD-62013

Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.



MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.

Installation Instructions

Click to view the Installation Instructions here
